Description
Designed for payloads up to 200g, the C-200T 3-Axis Gimbal features an orthogonal 3-axis mechanical stabilization structure and high-torque brushless motors. It delivers exceptional image stabilization even under severe vibration and high-speed airflow impact. Pair it with a Headtracker for an immersive, high-quality first-person control experience.
3-Axis Stabilization, Exceptional Image Stability
- Weight: 125g
- Dimensions: L 79–82.7mm × W 64.7–81.3 mm × H 91.6 mm
- Stabilization accuracy: ±0.01°
The C-200T combines an orthogonal 3-axis mechanical stabilization structure with high-torque brushless motors, IMU temperature control, and carrier AHRS fusion to achieve ±0.01° stabilization accuracy. Even during aggressive carrier maneuvers and high-speed airflow, it keeps the image stable.
Rich Interfaces, Customization-Ready

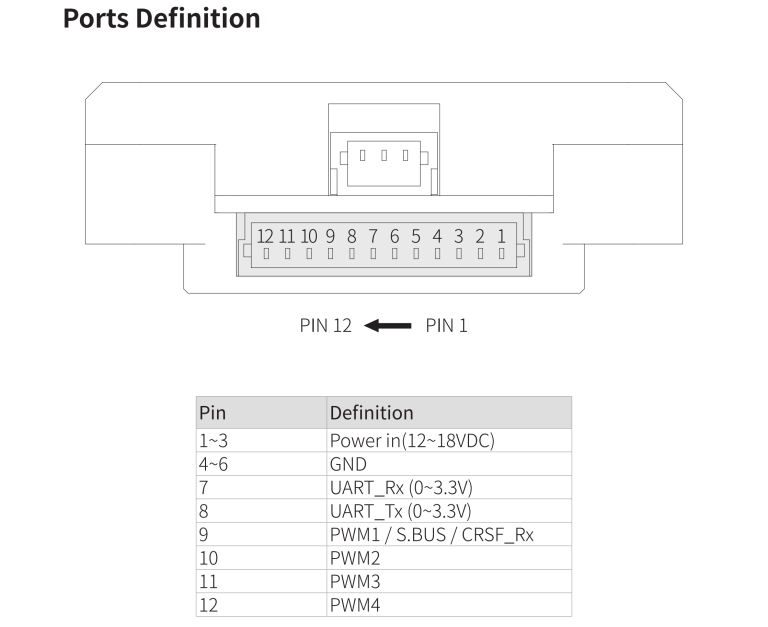

The C-200T supports multiple control methods, including Headtracker direct connection, UART (private protocol & MAVLink), S.BUS, CRSF, and PWM. It is compatible with leading autopilot firmware such as ArduPilot and PX4, meeting the integration needs of a wide range of flight platforms and control systems. Flexible control interfaces are available for custom development.
Multiple Modes, Direct Head Tracking

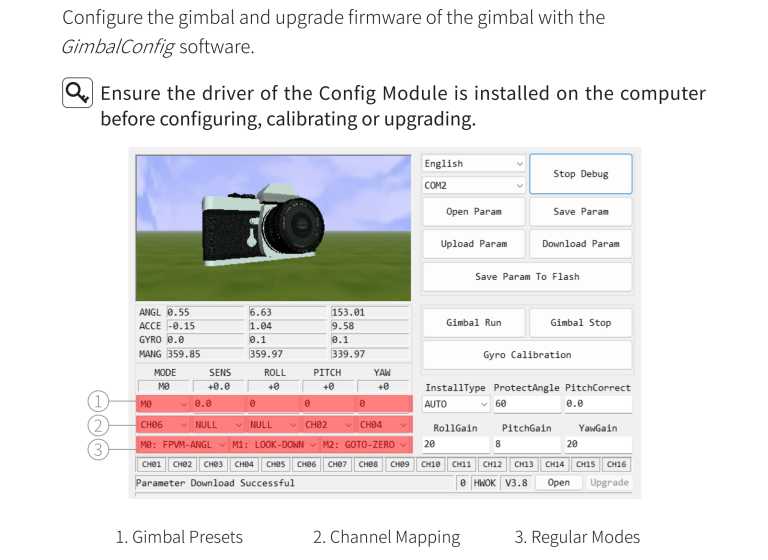

The C-200T offers multiple operating modes, including FPV, Pitch Lock, Horizon, Lock, Return-to-Center, and OrthoView (Look-Down). These cover a wide range of applications such as FPV aerial filming, stabilized shooting, and inspection operations. Parameter configuration, channel mapping, and gain tuning are supported through the GimbalConfig software.
When paired with a Headtracker, the C-200T provides an immersive, high-quality first-person control experience. Operators can control the gimbal’s direction with natural head movements, greatly improving efficiency and experience in aerial filming and inspection.
Compatible with Multiple Carriers for Diverse Applications
The C-200T supports downward and upward mounting and can be installed flexibly to suit different needs. It is compatible with multirotor, fixed-wing, VTOL fixed-wing, quadruped robot, and other carrier platforms. The C-200T is suitable for FPV aerial photography, lightweight inspection, research and testing, industrial applications, and more, delivering professional-grade stabilization and control.
