Description

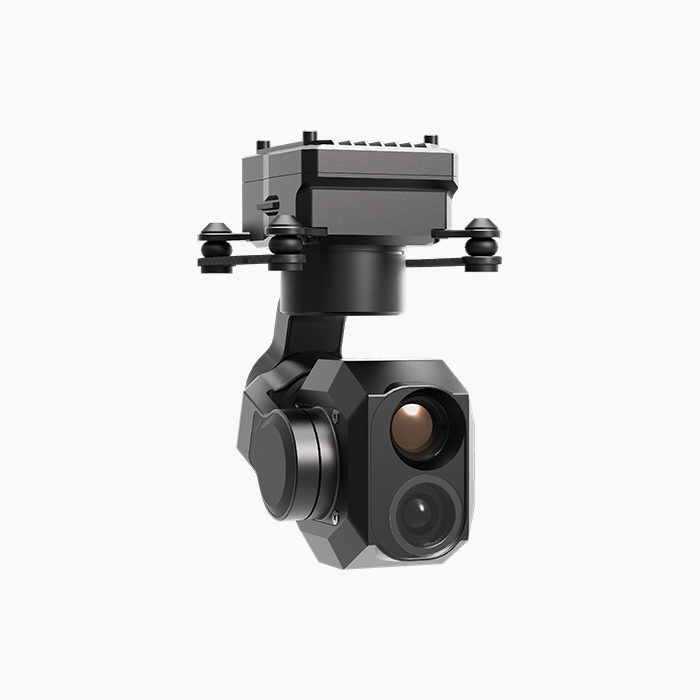

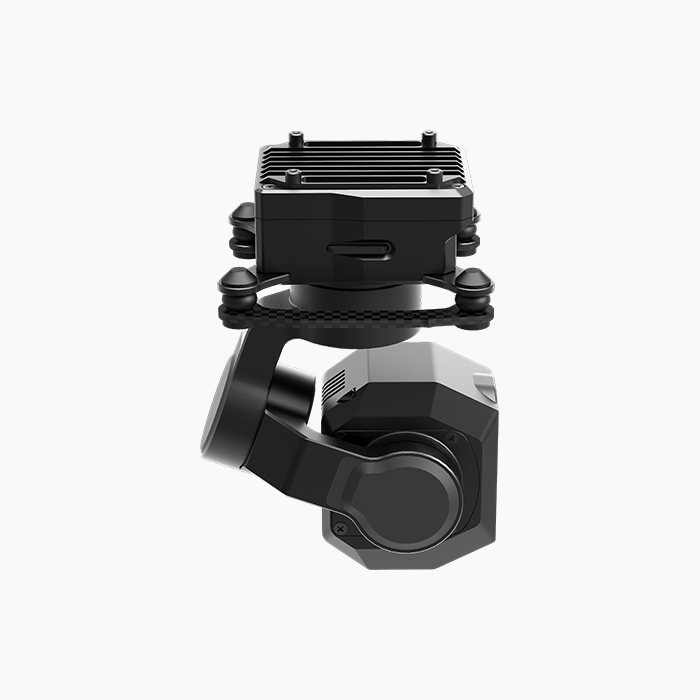

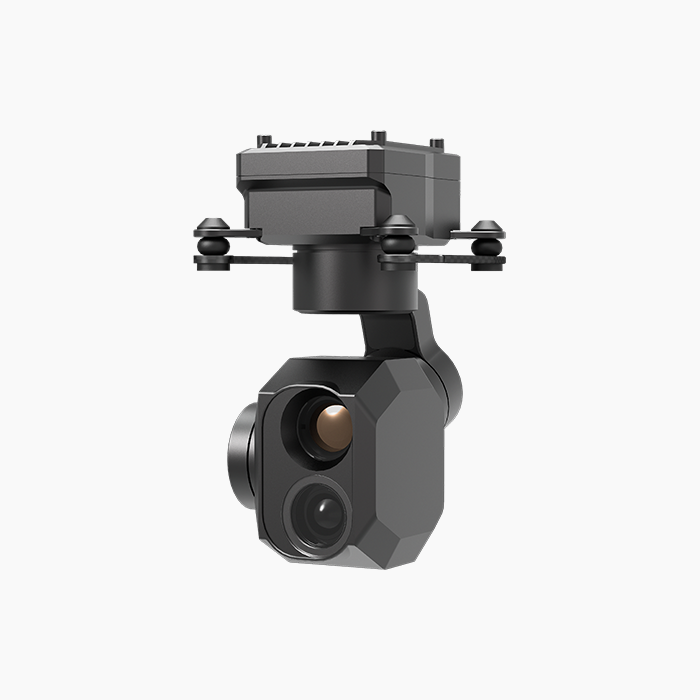

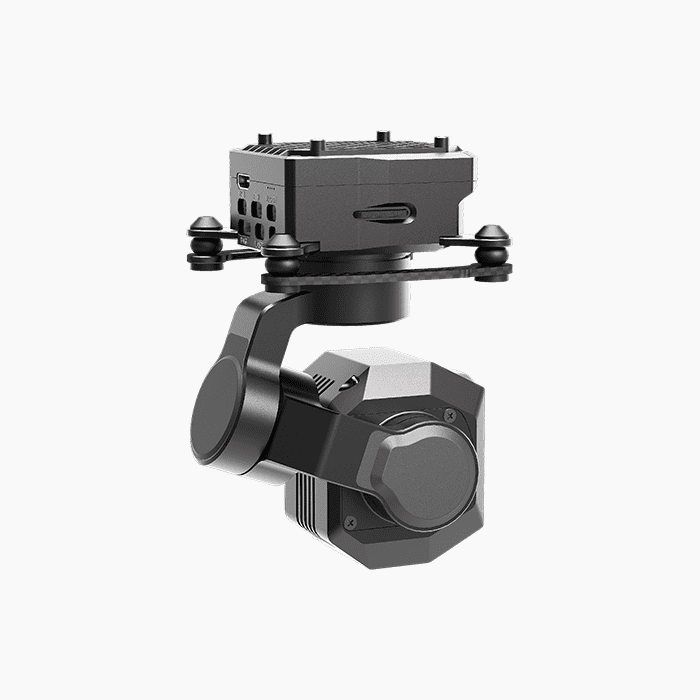

The Z‑2Mini integrates a 4K visible‑light camera and a 256×192 thermal imaging camera into an ultra‑compact, lightweight gimbal payload for UAVs. Designed for professional applications such as industrial inspection, security patrol, and environmental monitoring, it delivers stable, high‑quality imaging and intelligent tracking performance around the clock—day or night.

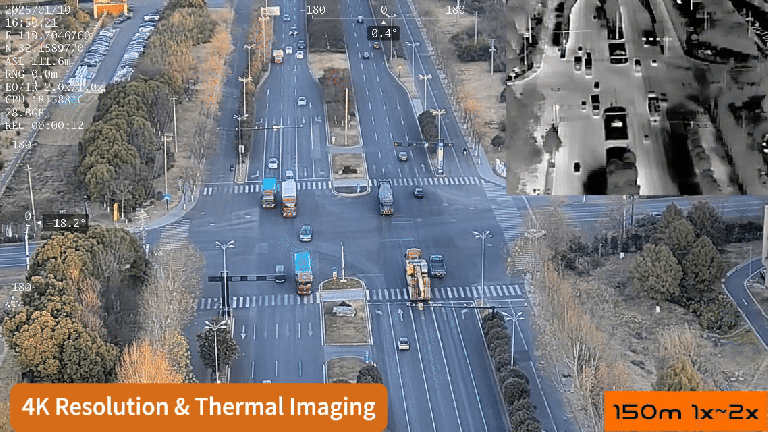

4K Resolution & 256×192 Thermal Imaging – Day & Night Ready
The 4K camera captures ultra‑high‑definition footage, preserving critical details even when operating at long distances. The thermal imager detects heat signatures to lock onto targets clearly in total darkness or through visual obstructions such as smoke, dust, or foliage.
Driven by the AI‑ISP full‑color night vision engine and AI‑HDR imaging technology, the Z‑2Mini produces vivid, full‑color images with outstanding detail in both low‑light conditions and scenes with extreme contrast between highlights and shadows.
3‑Axis Mechanical Stabilization – Compact Yet Rock‑Solid
The Z‑2Mini features a micro, non‑orthogonal 3‑axis mechanical stabilization structure. Weighing just 100 g and measuring 59×48.4×85.7 mm, it can be effortlessly mounted on fixed‑wing UAVs, multi‑rotors, quadruped robot dogs, RC cars, and other robotic platforms with virtually no impact on overall system size or weight.
With dual‑IMU complementary algorithms, IMU temperature control, and carrier AHRS data fusion, the gimbal achieves a stabilization accuracy of ±0.01°. Even during aggressive maneuvers, rapid pitch changes, climbing, running, or strong wind gusts, the Z‑2Mini delivers smooth, jitter‑free real‑time video.

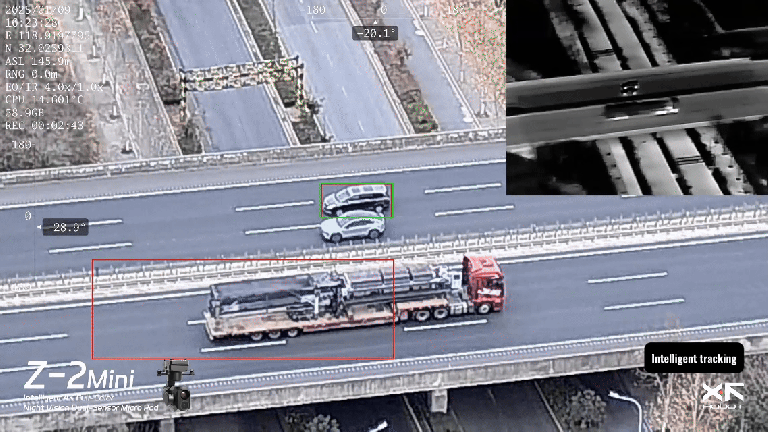

AI Multi‑Target Detection & Tracking – Smarter Operations
Equipped with advanced AI multi‑object detection and tracking, the Z‑2Mini can intelligently identify pedestrians and vehicles in its field of view and continuously track any selected target.
For inspection, search‑and‑rescue, and security missions, it automatically follows moving subjects—reducing operator workload, minimizing missed detections, and lowering false alarm rates, so you can accomplish tasks more efficiently and reliably.
Open‑Source Compatible & Rich Interfaces – Ready for Customization
The Z‑2Mini works seamlessly with XF‑QGC software to interface with mainstream open‑source flight controllers such as PX4 and ArduPilot, unlocking all gimbal functions with a single click.
Using the Dragonfly ground control software, users can view live video, operate the gimbal, and download photos/videos over the network without any protocol docking. The live view supports OSD overlays including latitude, longitude, and altitude, while photos can embed EXIF coordinates of the shooting location.
With support for network, UART, and S.BUS control, and compatibility with both proprietary and MAVLink protocols, the Z‑2Mini offers great flexibility for secondary development and custom integration.
Versatile Deployment – Empowering Complex Missions
The Z‑2Mini can be quickly installed on drones, robot dogs, RC cars, and a wide range of other carriers. It has been extensively deployed in industrial inspection, security surveillance, emergency rescue, and environmental monitoring, enabling 24/7 autonomous, intelligent operations in demanding real‑world scenarios.
