Description

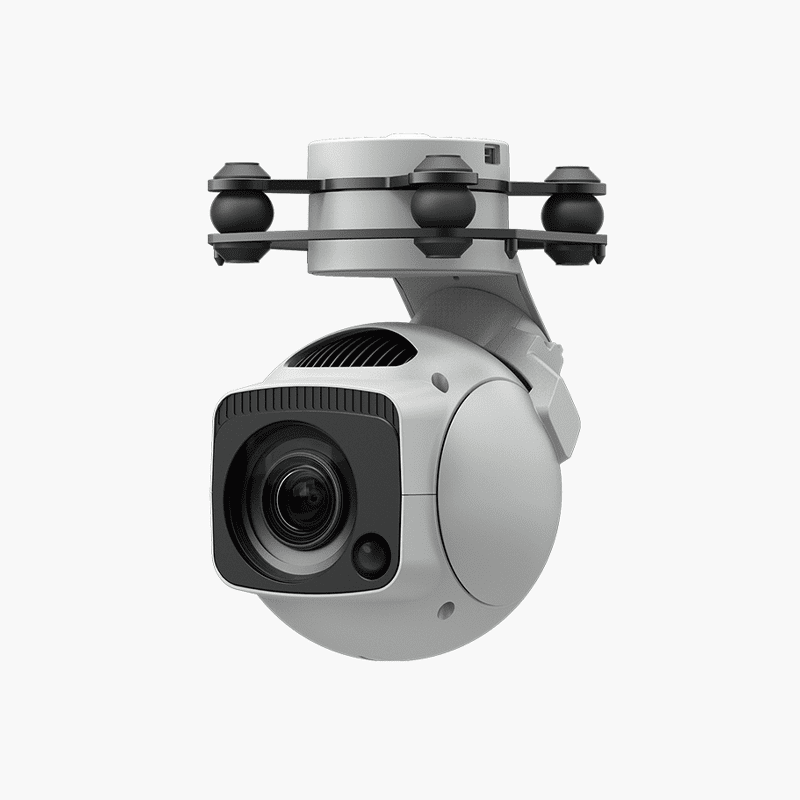

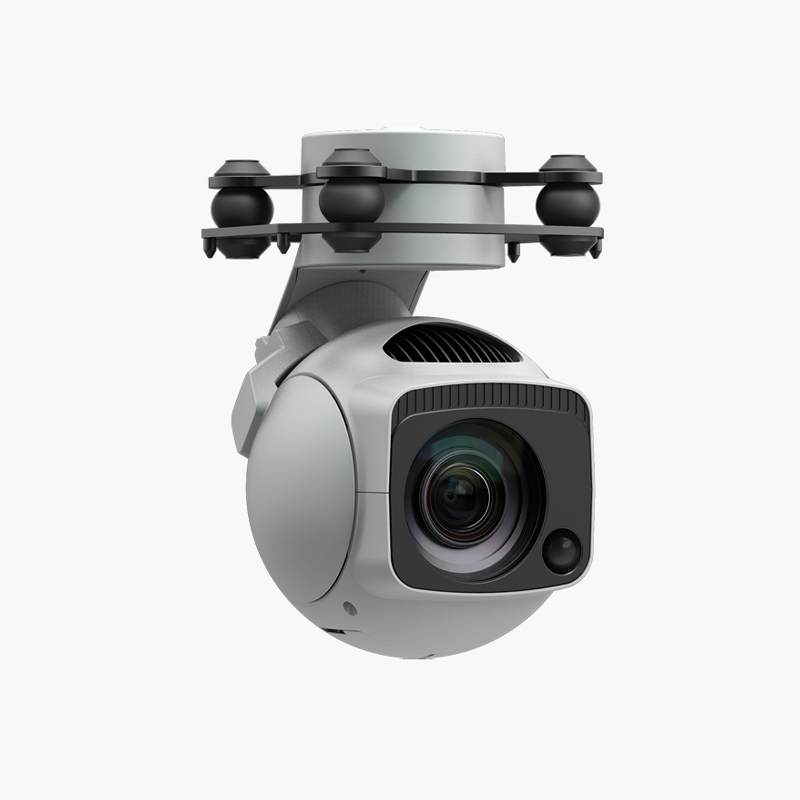

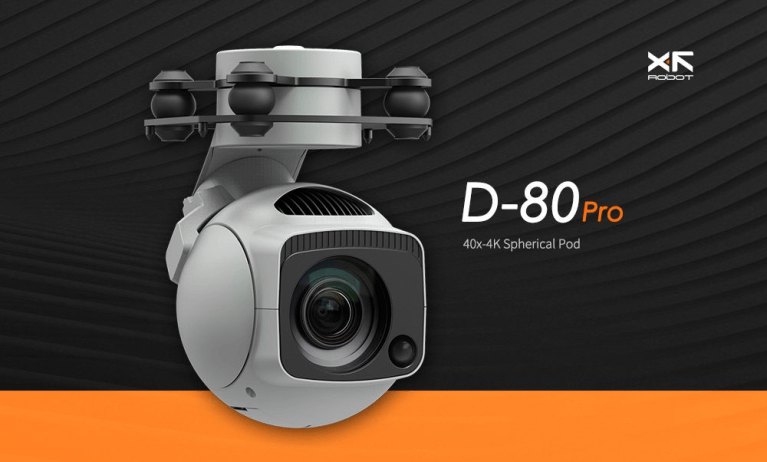

- The D-80Pro is a professional UAV payload featuring a high-precision 3-axis non-orthogonal gimbal, an 8.29MP 40× zoom camera, and an integrated laser illumination module. Designed for long-range observation, surveillance, and inspection missions, it enables users to quickly switch from a wide field of view to highly magnified imagery for detailed target identification and monitoring. The laser illumination module ensures clear and detailed imaging even in complete darkness, providing reliable day-and-night operational capability.
- Equipped with intelligent target tracking technology, the D-80Pro can continuously track selected targets in real time, improving observation accuracy and mission efficiency. Combined with its high-resolution zoom camera and precision stabilization system, the payload delivers stable and reliable imaging performance in dynamic and challenging environments, enhancing situational awareness during surveillance and inspection tasks.
- The D-80Pro supports tool-free installation on multiple UAV and robotic platforms and can be mounted downward or upward. With the GCU and Dragonfly software, users can view live video streams and control the payload in real time from a computer. Ideal for drone inspection, security patrol, public safety, emergency response, industrial monitoring, perimeter security, search and rescue, and ISR missions, the D-80Pro combines long-range zoom, night vision imaging, and intelligent tracking in a compact and versatile UAV payload solution.
Specifications:
- Carries an 8.29M pixels 40x hybrid zoom camera, which provides a video resolution of 4K@30fps and an image resolution of 3840×2160.

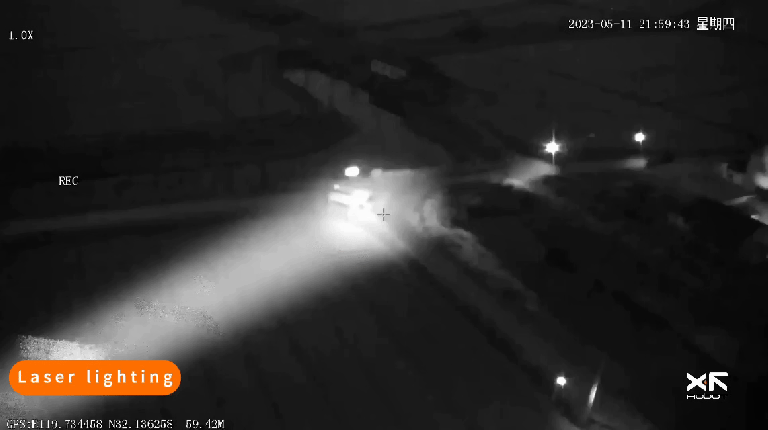

- Laser lighting module ensures the camera getting a clear image even in complete darkness.

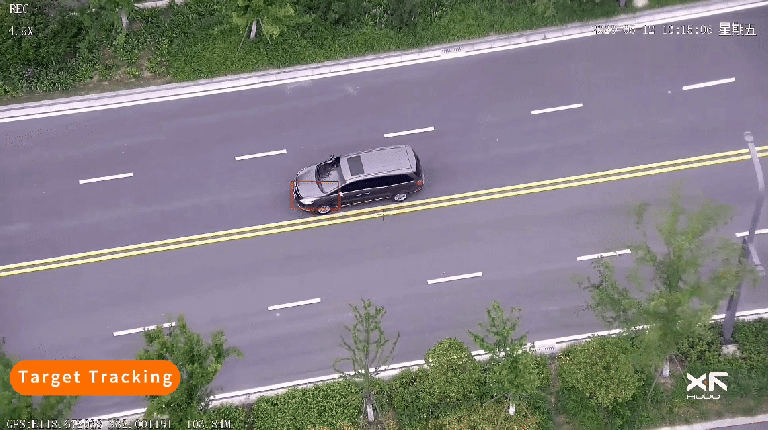

- Features auto target tracking, which can constantly track the target selected on screen.

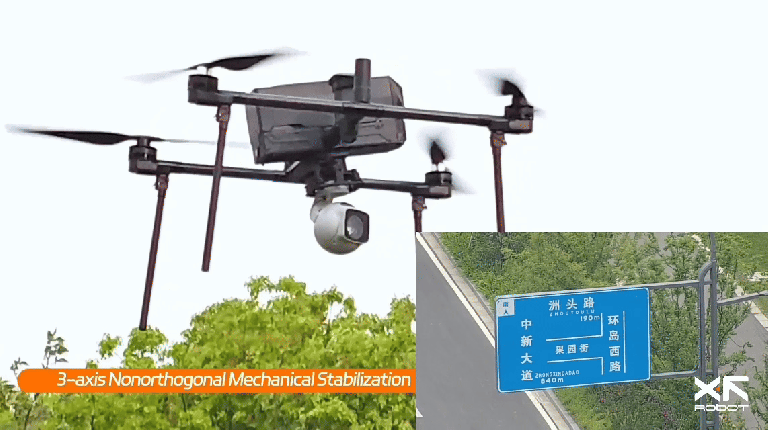

- Low-profile spherical shape and 3-axis nonorthogonal mechanical stabilized structure, minimize the gyration radius and the wind resistance of the pod. The D-80Pro is able to spin continually around its yaw axis.
- With the GCU, the D-80Pro supports network, UART and S.BUS control. The GCU supports both private protocol and MAVLink protocol.
- Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the D-80Pro provides a stabilization accuracy at ±0.01°.
- Can be mounted onto multiple carriers, whether downward or upward.
- With the GCU and the Dragonfly software, user can watch the image and control the pod without protocol ducking.

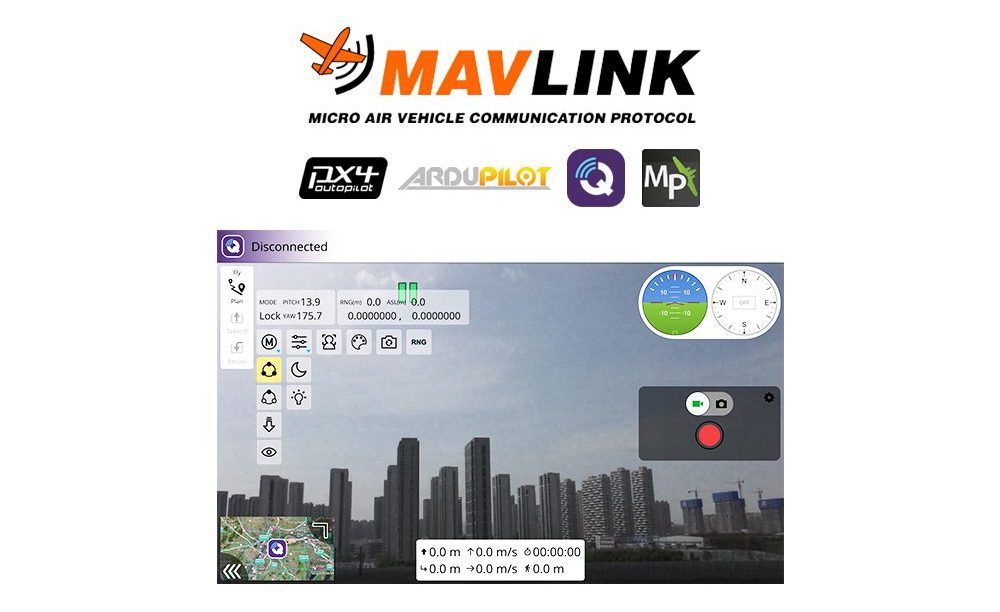

- With the customized QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.
- Screen supports overlaying OSD information such as latitude, longitude and altitude. Image supports shooting point coordinate EXIF save.
Supports ONVIF protocol. - 14~53 VDC wide voltage input.
