Description

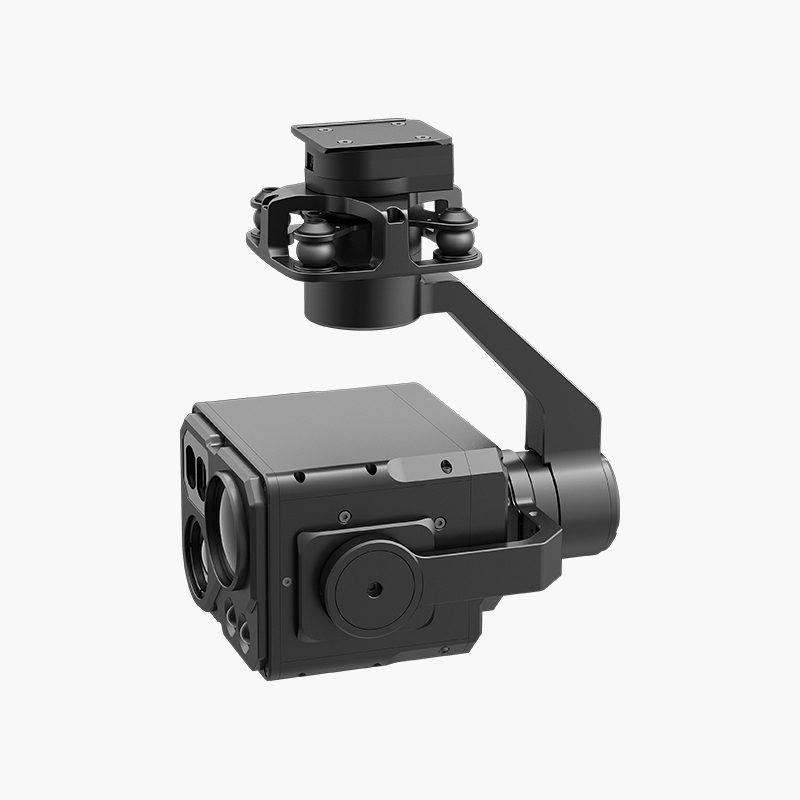

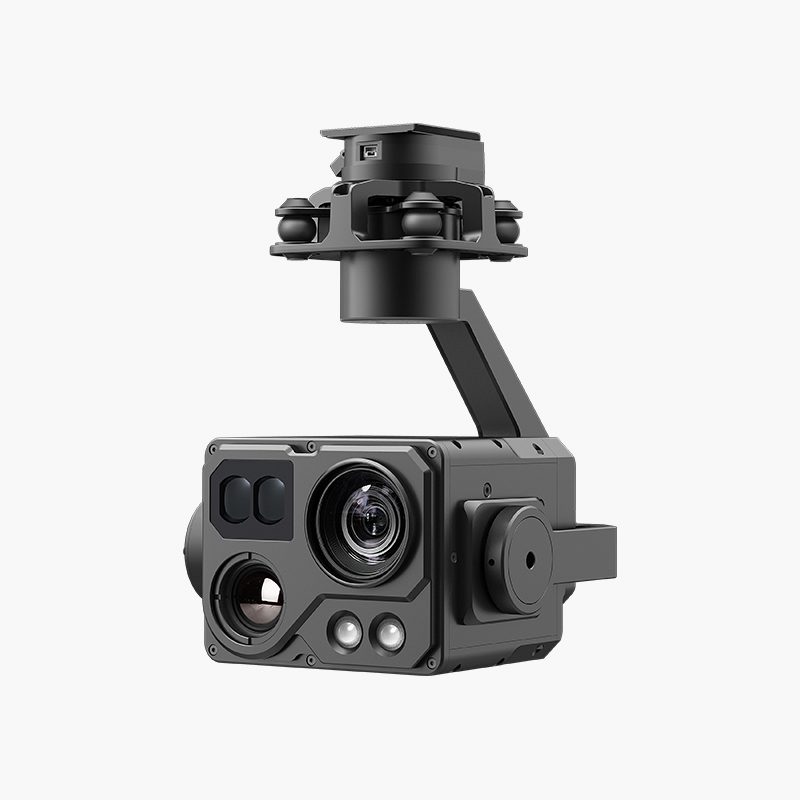

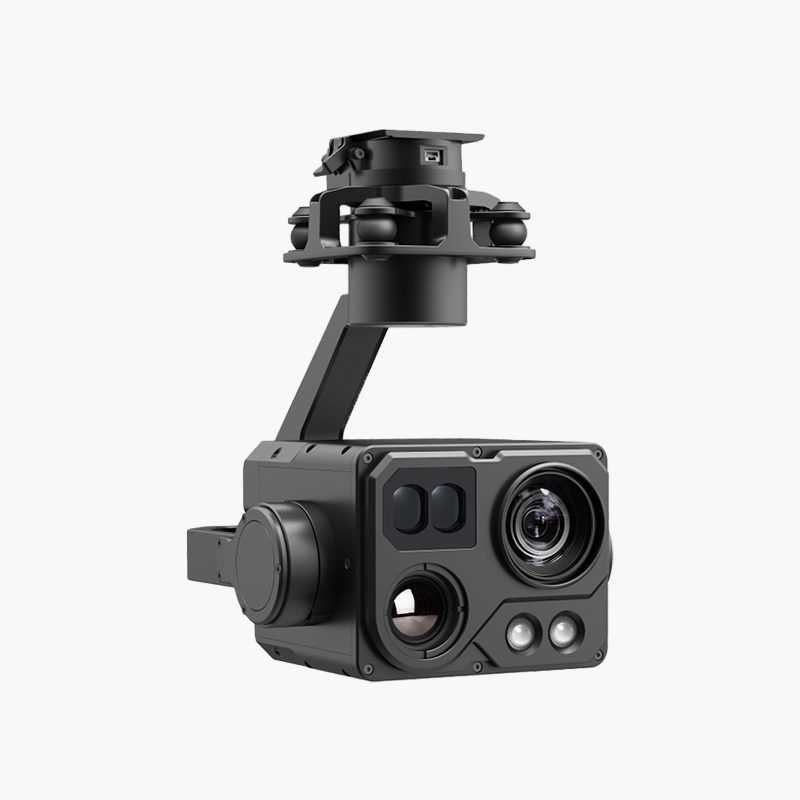

The Z-9B Intelligent Multi-Sensor Gimbal Camera is a high-performance 3-axis EO/IR UAV payload. It integrates four core sensing modules: a 120x hybrid zoom camera, an uncooled long-wave thermal camera, a laser rangefinder, and a laser illumination module. Featuring AI multi-object detection and tracking with ultra-high stabilization accuracy, it is perfectly compatible with a wide range of carriers, including UAVs, quadruped robot dogs, and ground robots. It is specifically designed for all-weather industry operations such as inspection, public safety, search and rescue, and emergency response.
Multi-Sensor Fusion for Multi-Modal Perception
Key Specs: 120x Hybrid Zoom | 1/2.8″ CMOS | 4.09 MP Resolution | 850±10nm Laser Wavelength | 640×512 Thermal Camera | -20°C to 150°C Temp. Measurement | Up to 2000m Laser Ranging
The Z-9B highly integrates a 120x hybrid zoom visible-light camera, an uncooled long-wave thermal camera, a laser rangefinder, and a laser illumination module into a single compact unit, enabling seamless multi-sensor collaboration.
- The 120x hybrid zoom camera captures clear details at extreme distances.
- The thermal camera detects heat sources independent of lighting conditions, making it ideal for equipment fault diagnosis and personnel search and rescue.
- The laser rangefinder provides real-time target distance up to 2000m and, combined with carrier data, outputs precise target coordinates for accurate positioning.
- The independent laser illumination module actively illuminates the observation area in complete darkness, ensuring clear and identifiable imagery.
With this multi-sensor synergy, the Z-9B operates effectively not only during the day but also overcomes lighting limitations for nighttime search and rescue, night patrols, and inspections in dark or complex environments. It enables true 7×24 all-weather operations, revolutionizing the industry experience.
3-Axis Gimbal for Ultra-High Image Stabilization
Key Specs: Weight: 1158g | Stabilization Accuracy: ±0.01° | Pitch: -120° to +55° | Roll: ±40° | Yaw: 360°×N
The Z-9B features a 3-axis orthogonal mechanical stabilized structure. Equipped with dual-IMU complementary algorithms, an IMU temperature control system, and carrier AHRS fusion, it achieves an outstanding stabilization accuracy of ±0.01°. The yaw axis supports continuous 360°×N unlimited rotation, providing an unobstructed field of view for large-area panoramic observation and continuous target tracking. Even during aggressive maneuvers, turbulence, or airflow disturbances, the Z-9B ensures a stable, shake-free, and smooth video output.
AI Multi-Object Detection & Precise Tracking
Key Specs: Target Detection Size: ≥30×20px | Target Tracking Size: 16×16 – 256×256px | Tracking Deviation Pixel Update Rate: 30Hz | Tracking Speed: >24px/frame
The Z-9B is equipped with AI multi-object detection and tracking, intelligently identifying pedestrians and vehicles in the captured footage and continuously locking onto any selected target. Even during high-speed movement, brief occlusion, or scene changes, the system rapidly re-acquires and maintains tracking. This capability reduces manual operational pressure, significantly improving efficiency in public safety patrols and emergency search missions. It is ideal for tasks such as road inspection, personnel search, and key target surveillance.
Software Ecosystem & Secondary Development Support
The Z-9B works seamlessly with the Dragonfly software, allowing users to view live video streams and control the payload in real time from a computer without protocol docking. The software features a built-in “Gallery” function for online downloading of captured photos and videos. The screen supports OSD information overlay, including latitude, longitude, and altitude. Images support shooting-point coordinate EXIF saving, and video streams support SEI (Supplemental Enhancement Information) overlay.
With the customized QGC software, all functions of the payload can be achieved in conjunction with an open-source autopilot. Furthermore, the Z-9B supports network, UART, and S.BUS control, and is compatible with both private protocols and the MAVLink protocol. It seamlessly integrates with mainstream open-source autopilots like PX4 and ArduPilot. An SDK development kit is provided to facilitate secondary development, custom system integration, and adaptation to proprietary platforms or industry-specific projects.
Versatile Compatibility for Diverse Applications
With multi-sensor fusion, AI multi-object detection and tracking, and all-weather perception, the Z-9B is widely adaptable to various UAV industry applications. For power line inspection, it utilizes thermal imaging to remotely detect overheating hazards in power lines and tower equipment. In public safety patrols, it conducts day and night monitoring of factories, industrial parks, and borderlines, automatically identifying and tracking intruders and vehicles. During emergency search and rescue operations in complex environments such as mountains, waters, and ruins, its laser ranging function rapidly pinpoints target coordinates to locate trapped personnel day or night. Ultimately, it fully meets the procurement and integration requirements of government, enterprise, and emergency departments.
