Description

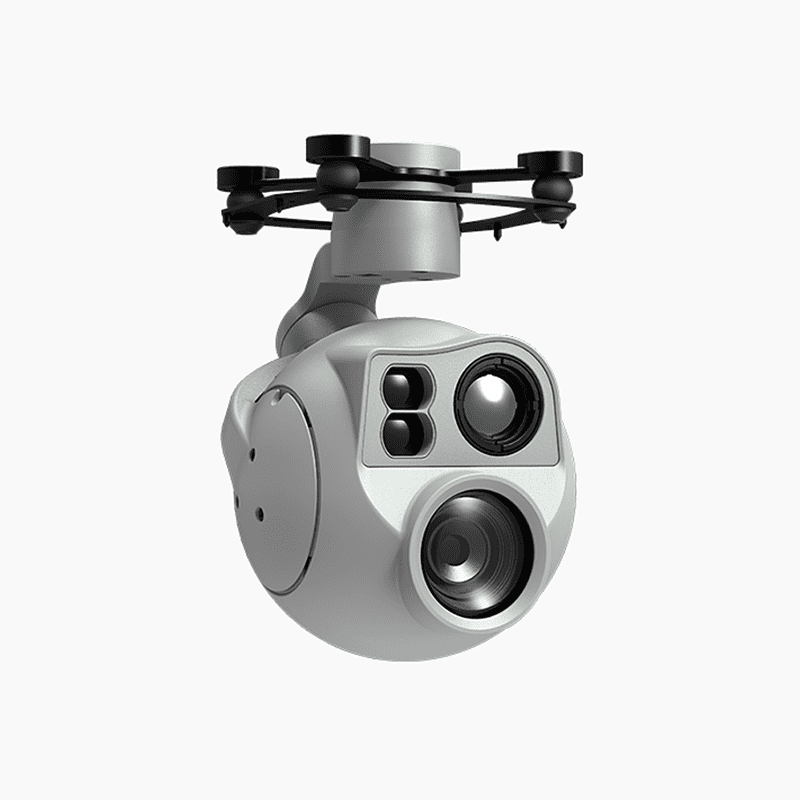

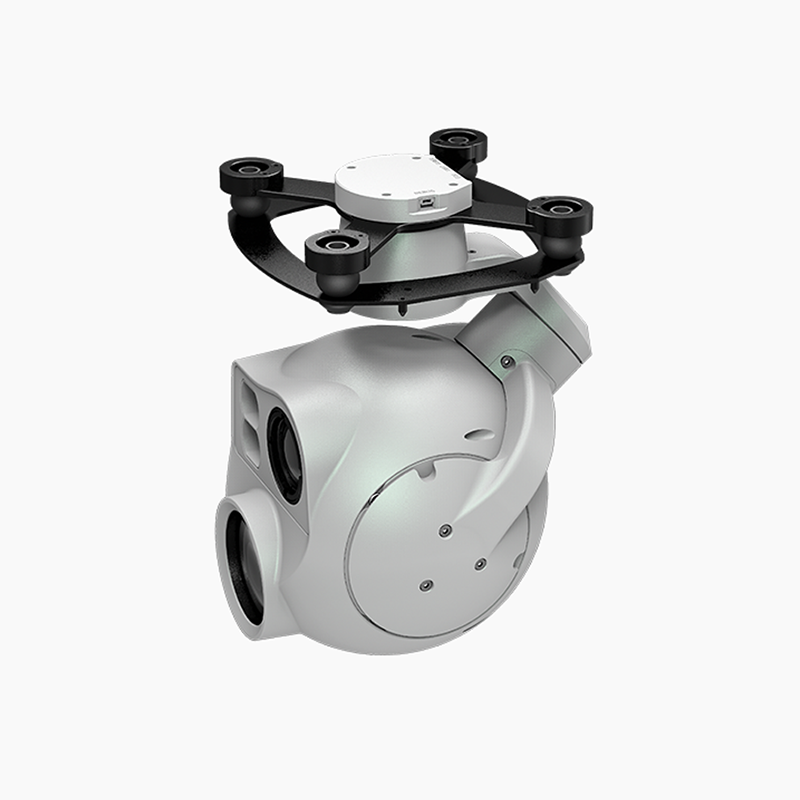

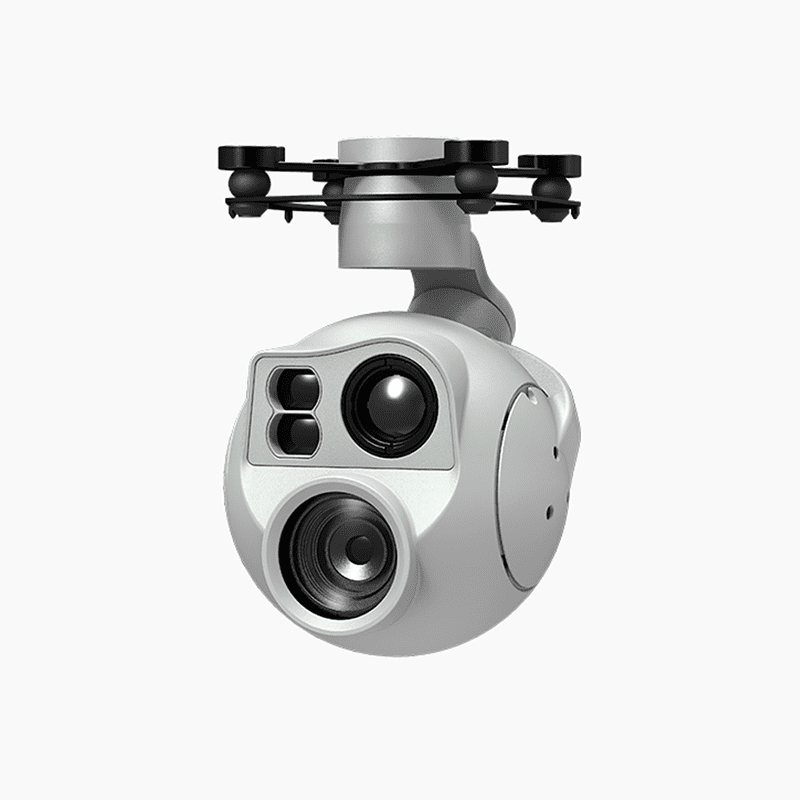

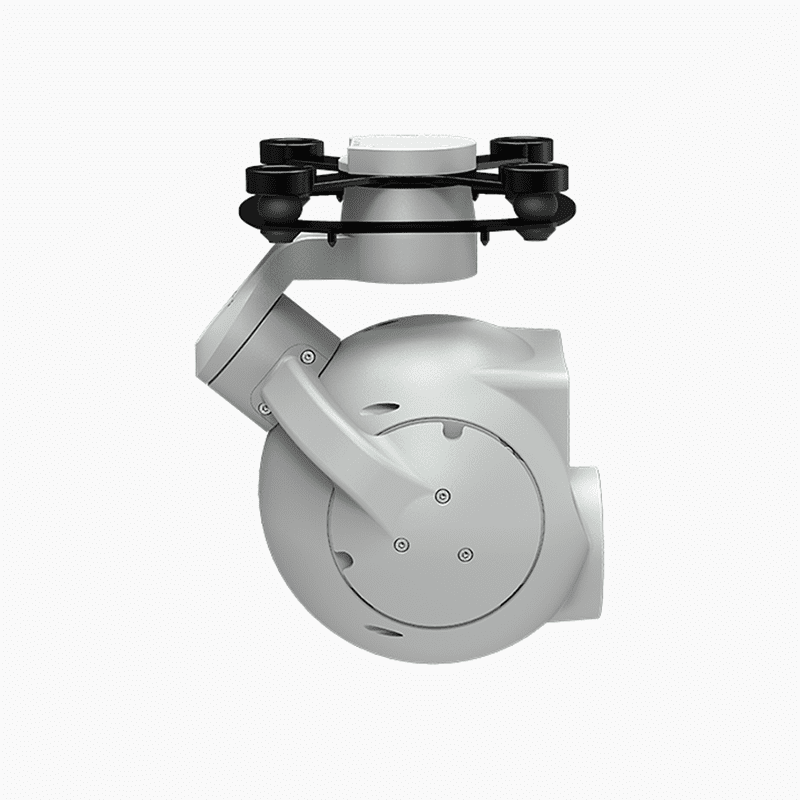

The D-125AI Intelligent Multi-Sensor Spherical Gimbal Camera is a professional EO/IR payload designed for professional aerial photography and industrial inspection. It integrates a 120× hybrid zoom visible-light camera, a thermal camera, and a laser rangefinder, and features AI multi-object detection and tracking. With the dual-IMU complementary stabilization system, it continuously delivers stable, clear, and measurable imagery under complex carrier attitudes and low-light conditions, meeting the mission requirements of security, inspection, surveying, search and rescue, and more.
Triple-Sensor Fusion, Multi-Mission Capability
- 120× Hybrid Zoom | Long-Wave Uncooled Thermal Camera | Laser Rangefinder | 5–2000 m Laser Ranging Range
The D-125AI integrates a 120× hybrid zoom camera, a long-wave uncooled thermal camera, and a laser rangefinder into one device. The 120× hybrid zoom visible-light camera captures details clearly from kilometers away. The long-wave uncooled thermal camera breaks through interference and limitations caused by darkness, haze, trees, and other environments, presenting clear heat-source images from a distance without contact. The laser rangefinder measures target distance in real time with meter-level accuracy, automatically completing real-time measurement of distance, altitude, speed, and other parameters and using the data for navigation, monitoring, or operational decision-making. Laser ranging range is up to 2000 m.
3-Axis Mechanical Stabilization, ±0.01° Stabilization Accuracy
- Weight: 1055 g | Sphere Diameter: 125 mm | Stabilization Accuracy: ±0.01° | Pitch Range: -120° to +40° | Roll Range: ±40° | Yaw Rotation: 360°×N
The D-125AI adopts a spherical shape and a non-orthogonal 3-axis mechanically stabilized structure. The yaw axis supports continuous 360°×N rotation for dead-angle-free observation. It also uses dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, achieving stabilization accuracy of ±0.01°. Regardless of how the carrier bumps or turns sharply, it still outputs smooth and stable imagery.
AI Multi-Object Detection, Precise Target Lock and Tracking
The D-125AI features AI multi-object detection and tracking. It can intelligently identify people and vehicles in the image and continuously lock onto and track any one of them. Target tracking size covers 16×16 to 256×256 pixels, with coordinate position updated every 30 ms. Even if the target is briefly occluded or moving at high speed, the D-125AI can still quickly capture and lock onto it for tracking.
Multi-Protocol Compatibility, Easy Secondary Development
The D-125AI supports network, UART, and S.BUS control. At the protocol level, it is compatible with both private protocol and MAVLink open-source protocol, enabling rapid integration with mainstream autopilot systems such as PX4 and ArduPilot. With the customized QGC software, all payload functions can be achieved, facilitating research, integration, and customized development.
With the in-house Dragonfly display and control software, live video can be displayed on a computer in real time without protocol docking, while the D-125AI payload can also be controlled. Video supports OSD information overlay, including latitude, longitude, and altitude. Photos support EXIF saving of shooting-point coordinates.
Compatible with Multiple Carriers for Industrial Applications
The D-125AI supports both downward and upward mounting and can be quickly installed on various carrier platforms such as multi-rotor drones, fixed-wing aircraft, quadruped robot dogs, and robots, shortening deployment cycles and reducing integration costs. It is suitable for professional fields such as security surveillance, power inspection, forestry fire prevention, emergency rescue, surveying and evidence collection, and research integration, providing all-weather, long-range, intelligent aerial imaging and observation solutions for users across multiple industries.
