Description

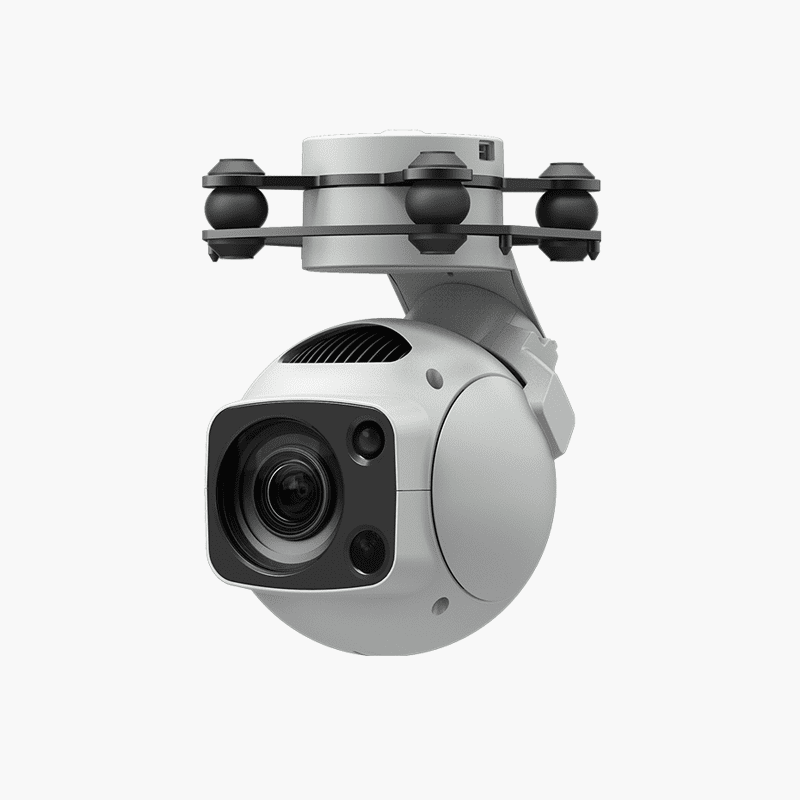

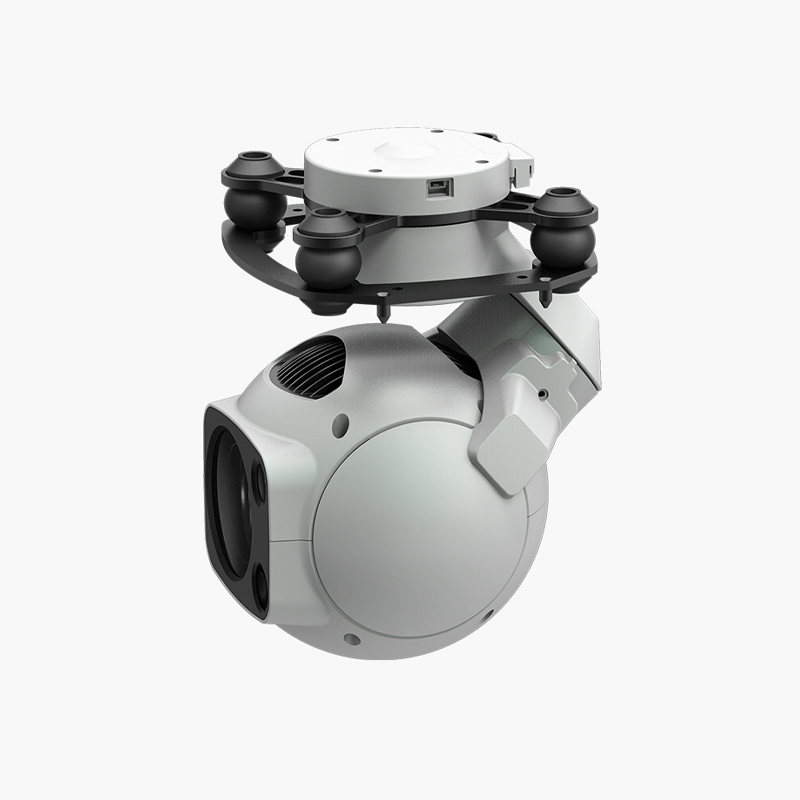

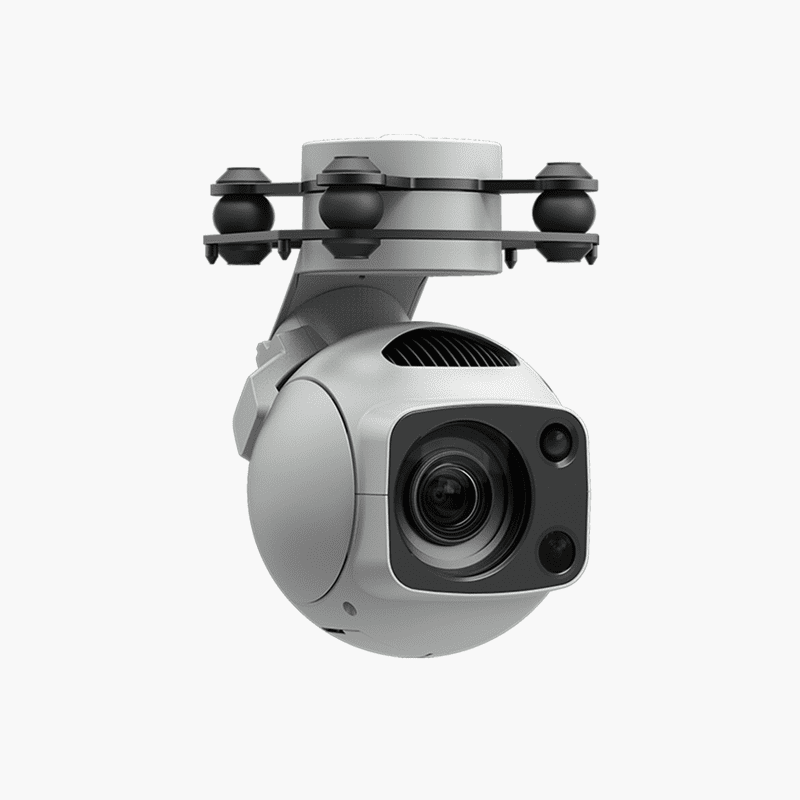

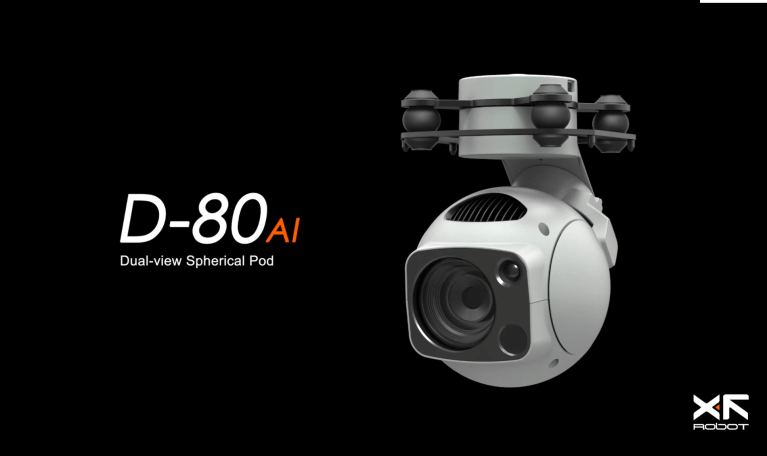

The D-80AI is a dual‑view spherical gimbal payload that integrates a wide‑angle camera, a 30× hybrid zoom camera, and a laser illumination module. It delivers crisp, clear imagery even in challenging lighting conditions and complete darkness. With built‑in AI multi‑object detection and tracking, the D‑80AI enables 7×24 intelligent operations across applications such as surveillance, emergency response, and industrial inspection.
Dual‑View Fusion – Day and Night Readiness
The D‑80AI combines a wide‑angle camera and a 30× hybrid zoom camera. The wide‑angle camera provides full situational awareness for rapid search and target acquisition, while the 30× zoom camera brings distant details into sharp focus.
An integrated laser illumination module delivers long‑range, wide‑coverage lighting, ensuring clear imagery even in zero‑light environments. Day or night, the D‑80AI keeps you informed.
3‑Axis Stabilization with ±0.01° Accuracy
The D‑80AI features a non‑orthogonal 3‑axis mechanical stabilization system engineered to minimise the gimbal’s gyration radius and aerodynamic drag. The high‑precision non‑orthogonal gimbal provides mechanical stabilisation in pitch, roll, and yaw.
The yaw axis supports 360°×N continuous rotation, eliminating blind spots.
Dual IMU complementary algorithms, combined with IMU temperature control and carrier AHRS data fusion, achieve stabilisation accuracy of ±0.01°. Even during aggressive manoeuvres or strong wind gusts, the video remains steady and usable.
AI Multi‑Object Detection & Tracking – Lock On with Precision
Equipped with advanced AI multi‑object detection and tracking, the D‑80AI intelligently identifies people and vehicles in the field of view and can continuously lock onto any selected target. The detection engine covers target sizes from 16×16 to 128×128 pixels, with recognition latency below 40 milliseconds – ensuring reliable, real‑time performance in dynamic environments.
Open‑Source Compatible – Ready for Custom Development

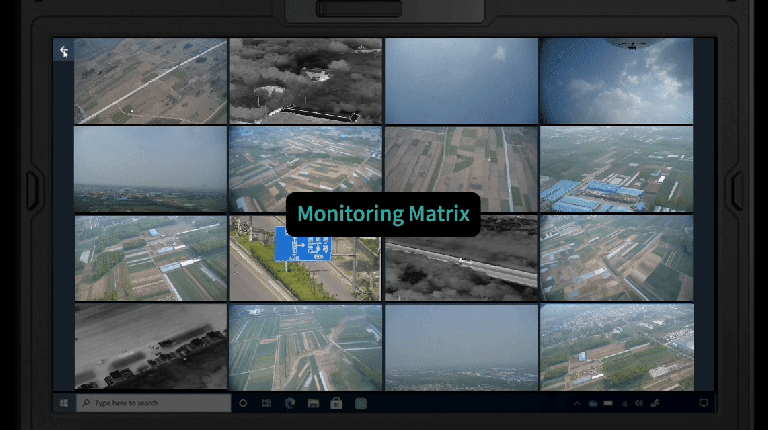

Together with the GCU and Dragonfly control software, the D‑80AI supports one‑station‑multi‑vehicle management, with a single terminal controlling up to 16 devices. Users can view live gimbal feeds, operate the payload, and download imagery online. On‑screen display (OSD) supports overlaying latitude, longitude, altitude, and other telemetry data; still images can embed shooting‑point coordinates in EXIF metadata.
With the customised QGC software, the D‑80AI seamlessly integrates with mainstream open‑source flight controllers such as PX4 and ArduPilot, unlocking full payload functionality without protocol compatibility concerns. This significantly reduces the cost of secondary development and customisation.
Multi‑Platform Deployment – Empowering Intelligent Operations Across Domains
The D‑80AI supports both upright and inverted mounting, enabling rapid installation on fixed‑wing UAVs, multi‑rotors, quadruped robots, unmanned ground vehicles, and other carrier platforms.
In security patrols, emergency response, power line inspection, and specialised area surveillance, the D‑80AI delivers continuous, high‑quality imaging even in complete darkness – dramatically improving operational efficiency and mission effectiveness.
