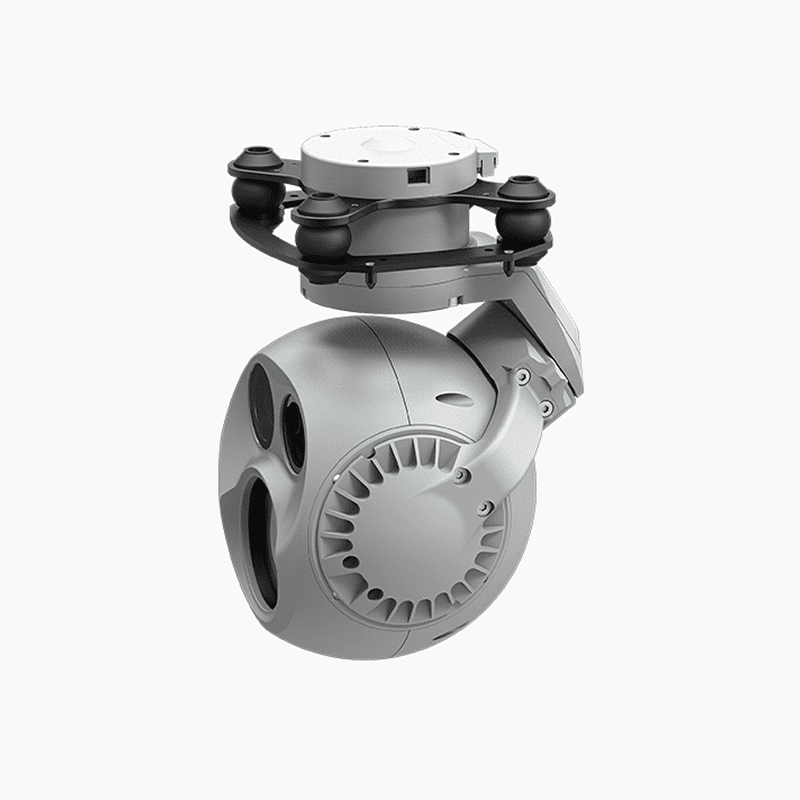

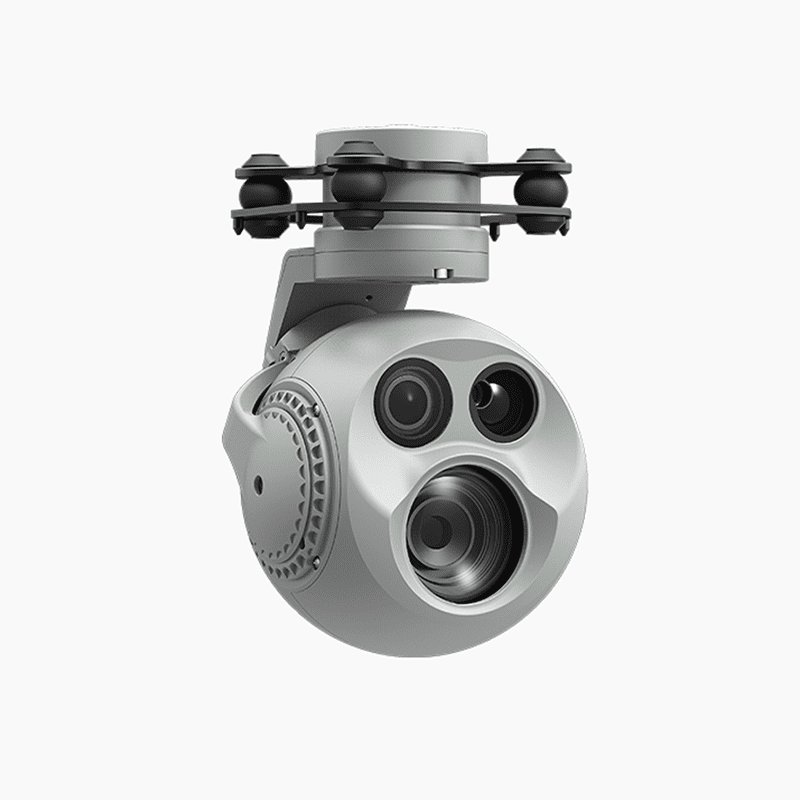

D-90DE Intelligent Multi-Sensor Spherical Gimbal Camera

D-90DE Intelligent Multi-Sensor Spherical Gimbal Camera

The D-90DE is an AI UAV EO payload featuring a wide-angle camera, 30× hybrid zoom, laser rangefinder, and AI target detection & tracking. With ±0.01° 3-axis stabilization, MAVLink support, and precision target positioning, it delivers reliable aerial imaging, target tracking, and precision positioning performance.

$2,630.00
Add to Wishlist
Add to Wishlist

Description

The D-90DE is an intelligent multi-sensor spherical gimbal camera that integrates high-precision gimbal stabilization, multi-power zoom imaging, AI-powered target detection and tracking, and laser ranging into a single compact payload. Designed to mount on a wide range of UAV and robotic dog platforms, the D-90DE delivers stable, clear, and precise visual perception solutions for security patrol, emergency reconnaissance, environmental monitoring, and engineering surveying missions.

30× Hybrid Zoom & Laser Ranging

Wide-Angle Camera | 30× Hybrid Zoom | 2.07 MP Effective Pixels | 1920×1080 Resolution | 5–1,200 m Laser Ranging Range

The D-90DE is equipped with both a wide-angle camera and a 30× hybrid zoom camera. The wide-angle camera provides a broad field of view for rapid area scanning and initial target acquisition, while the 30× hybrid zoom camera enables seamless, close-up observation — delivering crisp, detailed imagery when it matters most. Switch between wide and zoom views instantly, without losing situational awareness.

The integrated laser rangefinder delivers precise distance and coordinate data for observed targets. In search and rescue, pipeline inspection, or terrain surveying operations, this reliable ranging capability significantly reduces response time and improves operational efficiency.

3-Axis Non-Orthogonal Stabilization | ±0.01° Accuracy

Pitch: –150° to +50° | Yaw: ±360°×N Continuous | Unit Weight: 576 g | Stabilization Accuracy: ±0.01°

The D-90DE features a high-precision 3-axis non-orthogonal gimbal structure enclosed in a streamlined spherical housing, designed to minimize wind resistance during flight. The yaw axis supports continuous 360°×N rotation with no blind spots, enabling full-spectrum coverage of the surrounding area.

Powered by dual-IMU complementary algorithms, combined with IMU temperature control and carrier AHRS data fusion, the D-90DE achieves a stabilization accuracy of ±0.01°. Even under demanding conditions — high-speed maneuvers, turbulence, or strong wind — the output imagery remains smooth and steady.

AI Multi-Object Detection & Precision Tracking

Target Size: 16×16 – 128×128 px | Detection Speed: < 40 ms | Tracking Update Rate: 30 Hz

The D-90DE features AI multi-object detection and tracking capabilities. It can intelligently identify pedestrians and vehicles within the camera frame and maintain continuous lock-on tracking of any selected target. Coordinate positions are refreshed every 30 milliseconds, ensuring that even fast-moving or briefly occluded targets are rapidly re-acquired and tracked without interruption.

Multi-Protocol Compatibility | Ready for Integration

The D-90DE supports network, UART, and S.BUS control interfaces, and is compatible with both ALLXF private protocol and the MAVLink open standard. It is designed for custom function development and secondary integration. Paired with ALLXF’s proprietary QGC software, it can be connected to PX4, ArduPilot, and other mainstream open-source autopilots — unlocking full gimbal functionality with a single setup.

With the GCU (Gimbal Control Unit) and Dragonfly display-and-control software, operators can receive and view live HD video streams and control gimbal orientation, zoom, photo, and video recording directly from a computer — no additional protocol configuration required. Dragonfly also supports one-to-many and multi-screen matrix display, enabling simultaneous monitoring of multiple gimbal units for coordinated multi-device operations.

The video feed supports OSD overlay of latitude, longitude, and altitude information, synchronizing imagery with geospatial data in real time. Images support shooting-point coordinate EXIF metadata embedding, and video streams support SEI (Supplemental Enhancement Information) stacking.

See Everything丨Empower Every Industry

The D-90DE supports both downward and upward mounting orientations and features a tool-free quick-release structure, enabling fast and secure installation on various UAV and robotic platforms.

Leveraging its combination of stable imaging, intelligent perception, and precision positioning, the D-90DE is purpose-built for public security, emergency response, environmental monitoring, urban management, and beyond — significantly reducing the risk and cost of manual inspection operations.
