Description
The Z-1Pro intelligent black-light full-color night vision micro gimbal camera is equipped with an ultra-starlight visible-light camera and dual AI imaging engines, enabling it to deliver full-color, ultra-high-definition images in extremely low-light environments. Leveraging AI technology, it accurately detects and tracks pedestrians and vehicles. Employing a non-orthogonal 3-axis mechanical stabilization structure, the entire unit weighs as low as 100g. Utilizing a dual IMU complementary algorithm, combined with IMU temperature control and carrier aircraft inertial navigation data fusion, its image stabilization accuracy reaches ±0.01°. It is widely compatible with various carrier platforms such as robot dogs, FPV fixed-wing aircraft, multirotor UAVs, and remote-controlled vehicles, enabling all‑weather, all‑scene unmanned operations.

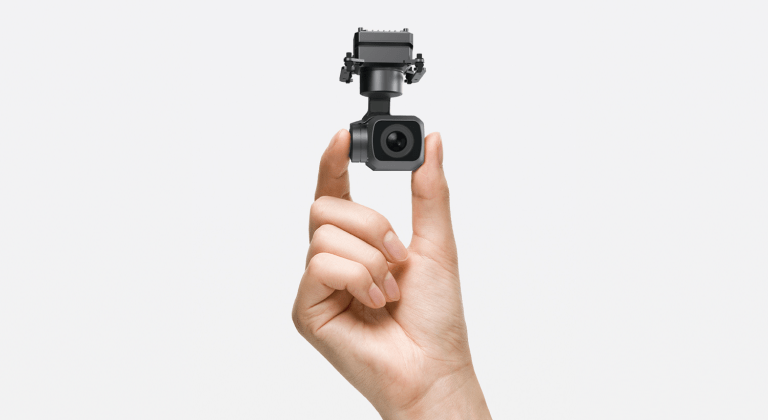

Ultra-Light, Ultra-Compact, Ultra-Stable
The Z-1Pro intelligent black-light full-color night vision micro gimbal camera is an original product independently developed by ALLXF, achieving an ultimate balance between performance and weight within a limited size.
Weighing only 100g, it can easily fit onto various carrier aircraft such as robot dogs, FPV fixed-wing aircraft, multirotor UAVs, and remote-controlled cars, occupying almost no payload space and not placing any additional burden on the carrier aircraft’s range or maneuverability.
Utilizing a dual IMU complementary algorithm, combined with deep fusion of IMU temperature control and carrier aircraft inertial navigation data, even during intense maneuvers and high-speed dives, the image stabilization accuracy remains as high as ±0.01°, resulting in smooth and stable images.

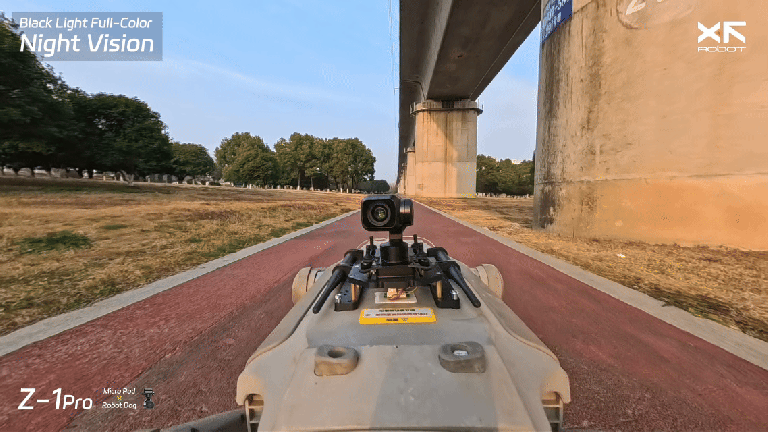

Starlight-Level Night Vision, Full-Color Clarity
The Z-1Pro intelligent black-light full-color night vision micro gimbal camera is equipped with an ultra‑starlight visible‑light camera and, paired with the AI‑ISP full‑color night vision imaging engine, delivers clear full‑color images in extremely low‑light environments, providing a night‑vision‑grade low‑light imaging experience.
For complex lighting conditions with strong brightness contrasts, the built‑in AI‑HDR function ensures that highlights remain free from overexposure while shadow details are preserved — every detail is clearly distinguishable.
Intelligent Perception, Precision Tracking
The Z-1Pro intelligent black-light full-color night vision micro gimbal camera features AI multi-object detection and tracking, accurately identifying pedestrians and vehicles. It covers target sizes from 16×16 to 128×128 pixels with a recognition speed of less than 40 milliseconds.
Users can select any target to activate continuous tracking mode, updating target coordinates 30 times per second in real time. Even with high-speed movement or sharp changes in direction, the Z-1Pro intelligent black-light full-color night vision micro gimbal camera can accurately lock onto the target without missing it.

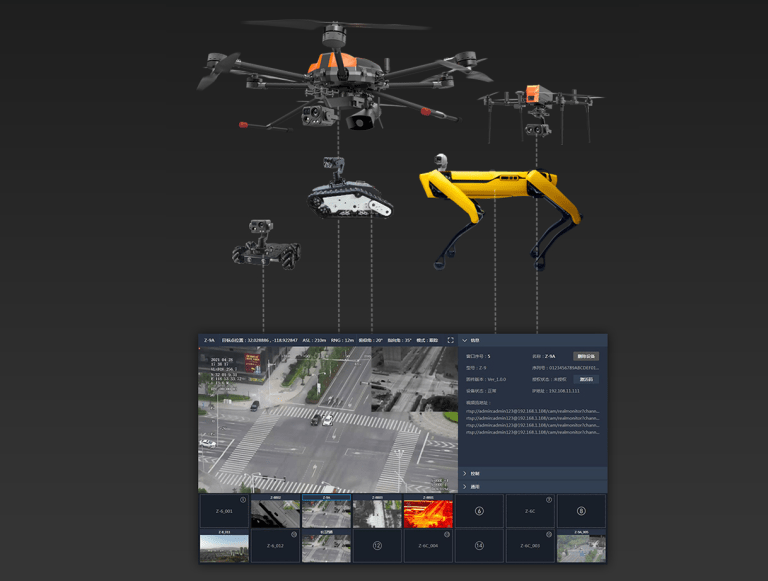

Plug‑and‑Play, Ecosystem Compatibility
To reduce costs for secondary development, deployment, and adaptation, the Z-1Pro intelligent black-light full-color night vision micro gimbal camera is ready to use out of the box and widely compatible.
● Utilizing ALLXF’s self-developed Dragonfly display and control software, no additional interface protocols are required. Users can view the footage in real-time on a computer, supporting split-screen display, pod remote control, and online image download.
● The XF-QGC software, developed by ALLXF, supports the MAVLink protocol and can be directly connected to mainstream open-source flight controllers such as PX4 and ArduPilot, easily unlocking all functions and meeting customized needs.
● In terms of interfaces, it supports multiple control methods such as network, serial port and S.BUS, is compatible with proprietary protocols and MAVLink protocols, and supports secondary development, which can flexibly adapt to different devices and operating scenarios.

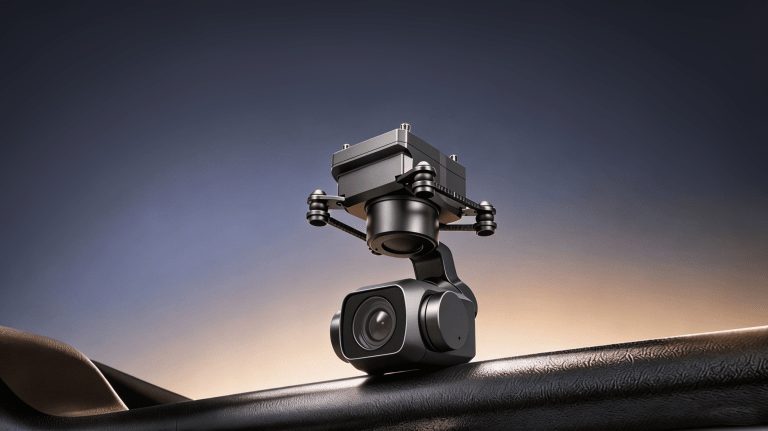

Top or Bottom Mounting, Flexible Deployment
Supports both lifting and vertical mounting modes, allowing for rapid deployment whether the drone is suspended from the bottom or fixed to the top. Its lightweight and compact design seamlessly adapts to various carrier platforms, including FPV fixed-wing drones, multirotor UAVs, remote-controlled vehicles, and robotic dogs, meeting the needs of diverse operational scenarios.
