Description
Ultimate stability Enhancement & Broad Compatibility

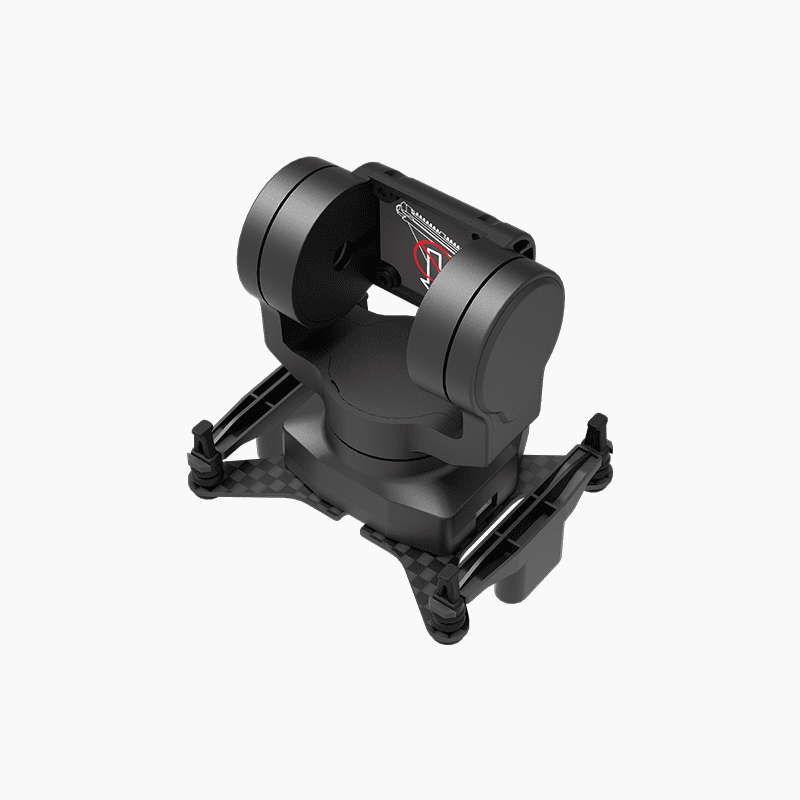

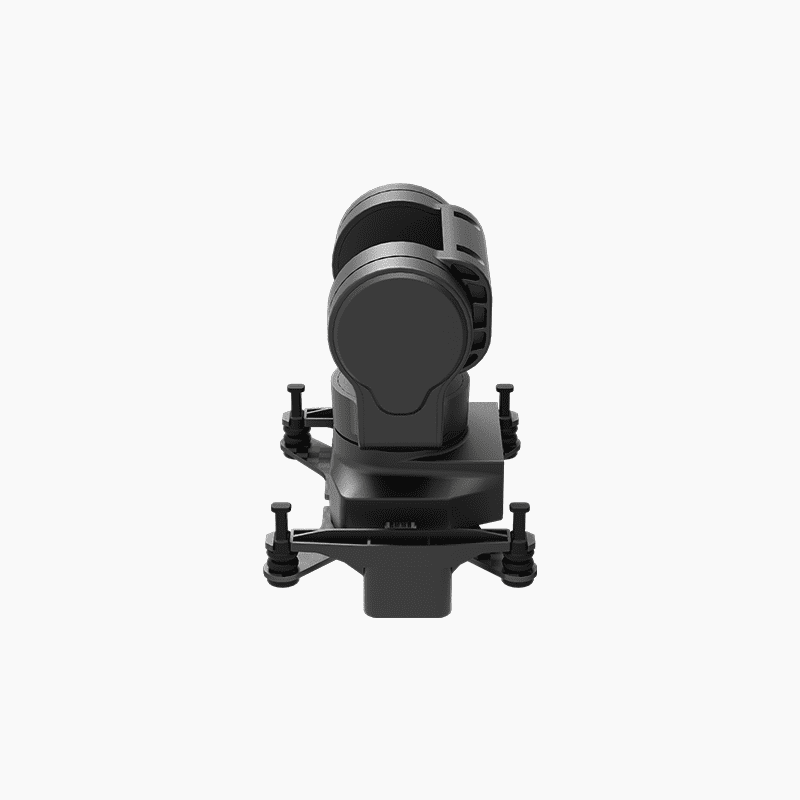

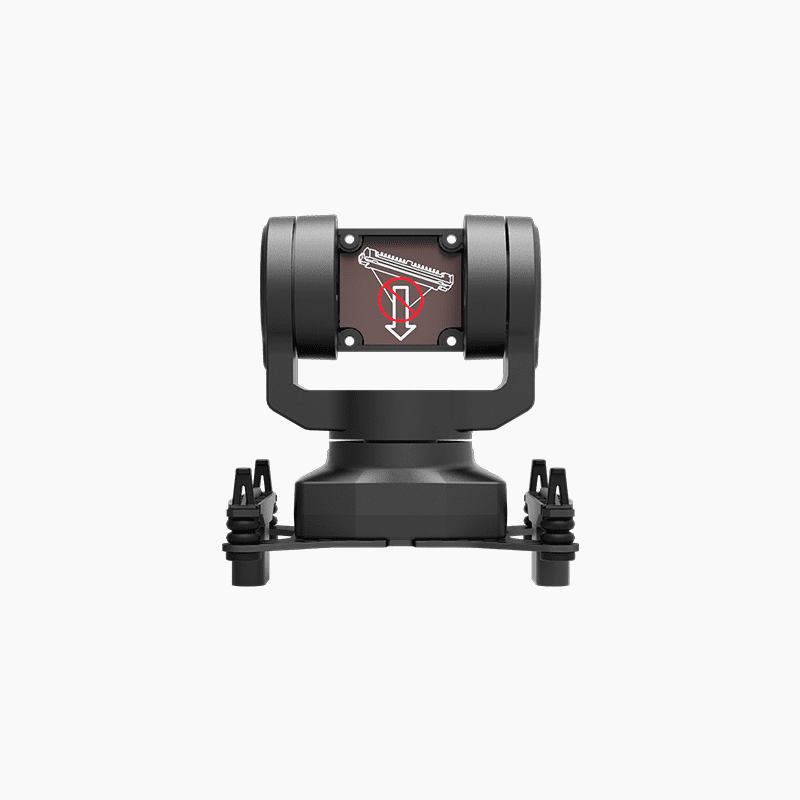

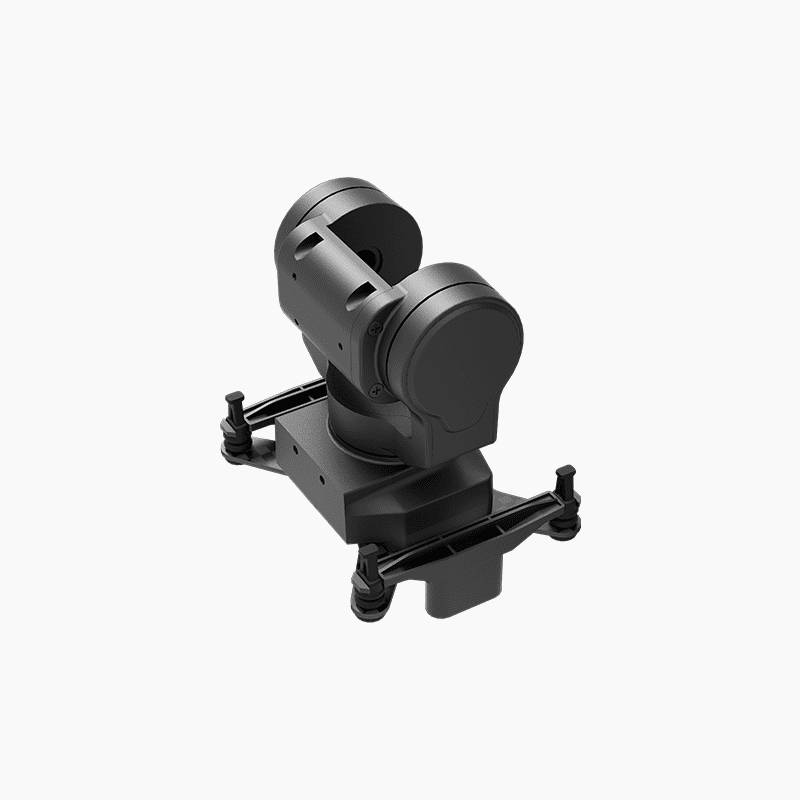

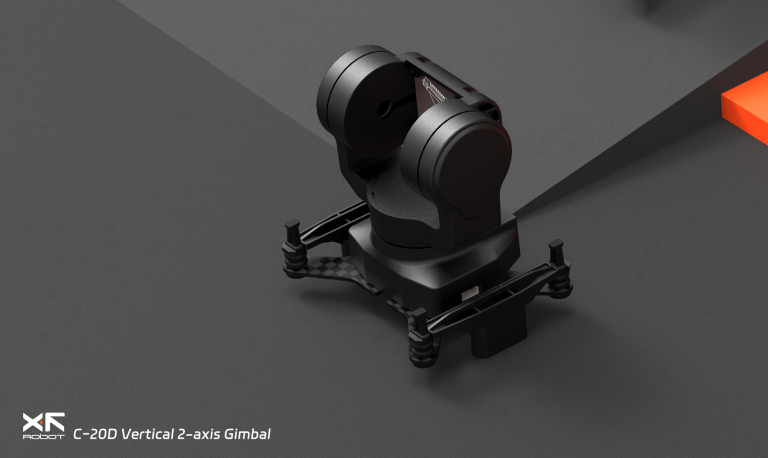

The C-20D vertical 2-axis stabilized gimbal is compatible with a variety of mainstream digital image transmission systems and analog camera image transmission systems. Utilizing a 2-axis mechanical stabilization design and equipped with a high-torque brushless motor, it achieves excellent image stabilization performance while maintaining an extremely lightweight design. Whether it’s high-speed driving of a remote-controlled car or the intense maneuvers of an FPV fixed-wing aircraft, the C-20D vertical 2-axis stabilized gimbal can withstand bumps and airflow impacts, ensuring stable and smooth high-quality image output.
Lightweight Design, Effortless Integration
- pursuing the ultimate in lightweight
- weighs 36g
- measures 42×50.9×55.7mm
- high-performance polymer
The C-20D gimbal can be easily integrated into various aircraft platforms with almost no additional load burden and no impact on the flight performance and endurance of the aircraft.
2-Axis Stabilization – Vibration Erased
The C-20D gimbal adopts a 2-axis mechanical stabilization configuration and is equipped with a high-torque brushless motor, enabling high-speed response and precise positioning.
Whether it’s a remote-controlled car traversing gravel roads, muddy ditches, or an FPV fixed-wing vehicle making a high-speed dive, sharp turns, or rolls, the footage remains consistently smooth and stable, without any shakiness or blurriness. It’s designed for extreme scenarios such as FPV racing and remote-controlled car racing.
Open Ecosystem, Wide Compatibility
The C-20D vertical 2-axis stabilized gimbal boasts excellent compatibility, adapting to the vast majority of mainstream digital image transmission systems, analog cameras, and control interfaces on the market, providing universities, research institutions, and developers with room for secondary development.
- Digital Transmission Compatibility: Supports DJI O4 Pro, DJI O4, DJI O3, Snail AvaDar, and Snail Moonlight.
- Analog Camera Compatibility: Supports analog cameras up to 19mm width.
- Rich Control Interfaces: Head-tracking direct connection, Serial (proprietary & MAVLink), S.BUS, CRSF, and PWM.
Versatile Scenarios, Limitless Possibilities
The C-20D vertical 2-axis stabilization gimbal can flexibly adapt to different types of carriers and shooting needs, and provides users with secondary development functions.
- FPV Fixed-Wing: Lightweight design and 2-axis stabilization ensure stable image output during high-speed flight, sharp turns, and dives.
- RC Cars: It can withstand the severe bumps, sharp turns, and collisions of RC cars, providing the operator with a stable first-person perspective and enhancing the racing experience.
- Immersive Flight: FPV mode and head-tracking control deliver a cockpit‑like experience that mirrors real‑world aviation.

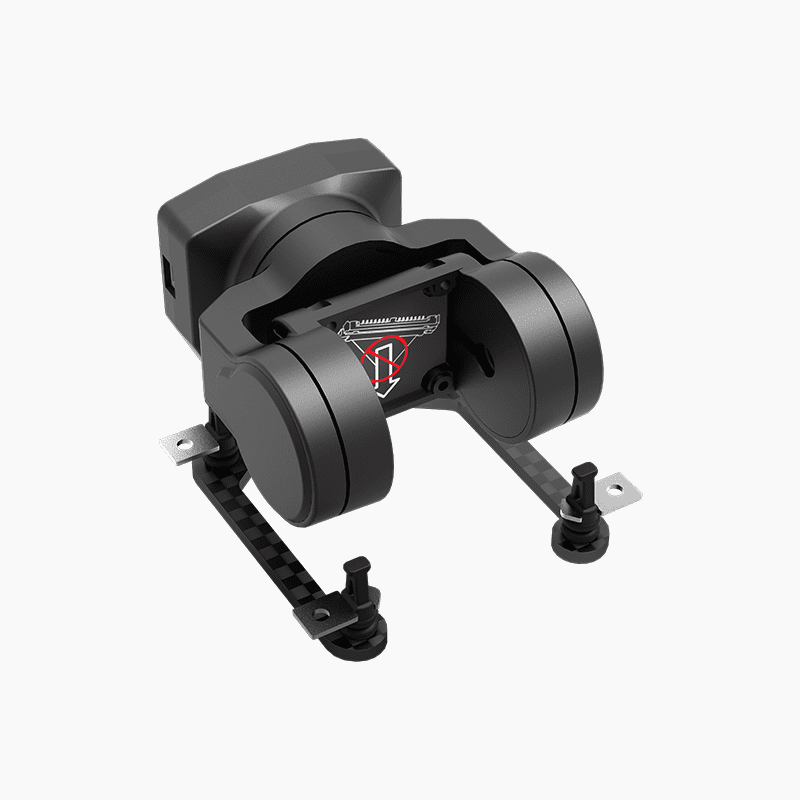

- Quadruped Robot Dogs: Equipped with a C-20D vertical/horizontal two-axis stabilized gimbal, this robot dog can perform tasks such as inspection and search and rescue in complex terrain, providing users with clear and continuous real-time footage.
Research and Education: Supports both MAVLink and proprietary protocols, providing universities and research institutions with room for secondary development; offers stable and reliable vision support in research and teaching scenarios such as robot vision, autonomous navigation, and optoelectronic competitions.
“What impressed us most about the C‑20D gimbal is its light weight, rock‑solid stabilization, and open‑source compatibility. We did deep secondary development on it—integrating our own interface and algorithms—and it delivered outstanding targeting accuracy in the smart‑vehicle laser combat challenge.”
—2025 National Undergraduate Optoelectronic Design Competition (13th Edition), Finalist Team
Multiple Stabilization Modes – Choose Your Playstyle
The C-20D gimbal offers multiple stability augmentation modes, which users can switch flexibly according to different aircraft types and usage scenarios to obtain the best experience.
Horizon Mode
- Keeps the horizon perfectly level regardless of aircraft tilt or roll.
- Ideal for aerial photography, inspection, and any application requiring a stable horizontal reference.
FPV Mode
- Full 2‑axis 3D motion tracking synchronizes the gimbal attitude with the aircraft’s every move.
- Delivers the most immersive first‑person perspective for FPV flight.
Head-Tracking Control
- Pitch range: –35° to +175°, Pan range: ±145°
- Your head movements are accurately mirrored for a truly intuitive, immersive control experience.
