Description

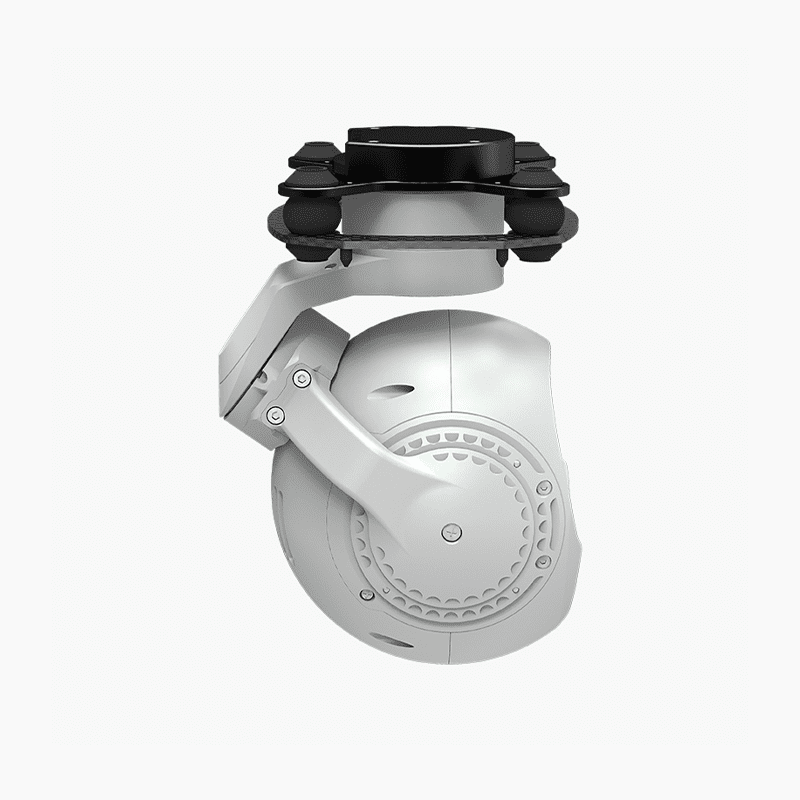

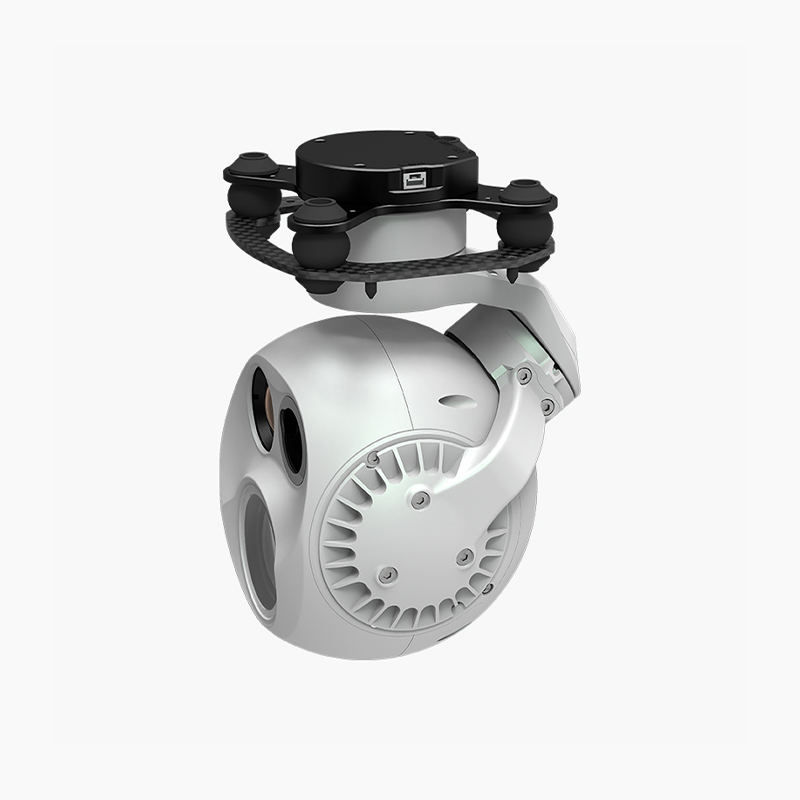

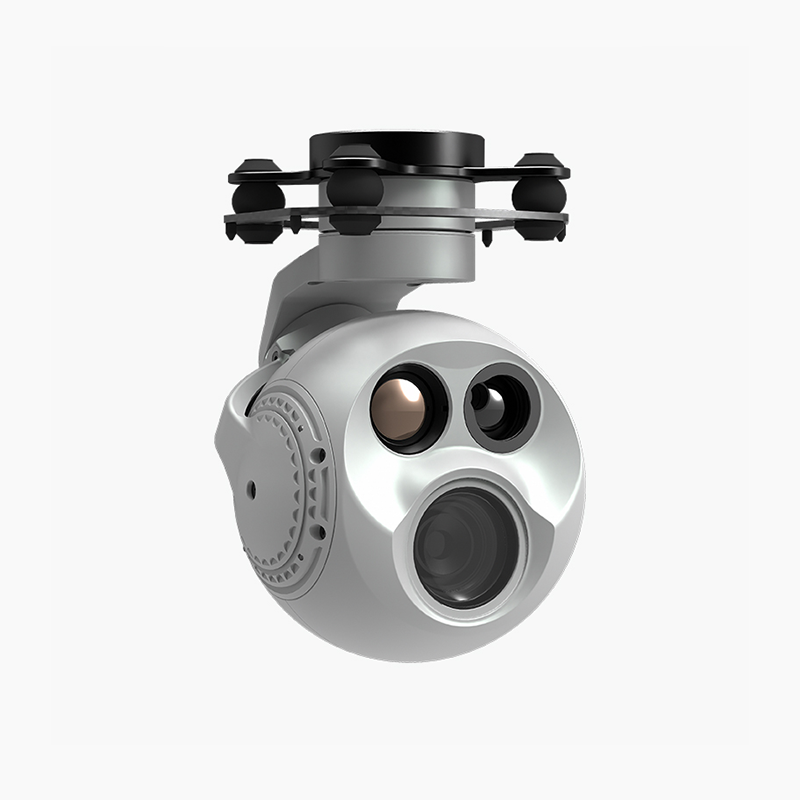

The D-90Pro combines 4K visible-light imaging, thermal imaging, and laser ranging in a single spherical payload. Powered by an AI-ISP full-color night vision imaging engine, it delivers clear, true-to-life color and detail even in extremely low-light conditions. With AI multi-object detection and tracking, it supports all-weather, intelligent inspection operations.
3-Axis Stabilization with ±0.01° Stabilization Accuracy
- Dimensions: 96.4 × 96 × 147 mm | Weight: 620 g | Stabilization accuracy: ±0.01°
- Pitch range: -175° ~ +105° | Roll range: ±50° | Yaw range: 360° × N
The D-90Pro adopts a nonorthogonal 3-axis mechanical stabilization structure, combined with Dual-IMU complementary algorithms, IMU temperature control, and carrier AHRS fusion, achieving stabilization accuracy of ±0.01°. Even during aggressive maneuvers or high-speed airflow disturbances, the gimbal maintains stable imagery. The yaw axis supports continuous 360° × N rotation for unlimited coverage with no blind spots, making it ideal for wide-area aerial patrol.
Triple-Sensor Integration, 4K Full-Color Imaging
- 4K resolution | 60× hybrid zoom | AI-ISP full-color night vision | Thermal camera
- 5–1200 m laser ranging range | 3840 × 2160 photo resolution
The D-90Pro is equipped with an AI-ISP full-color night vision imaging engine, breaking the limitation of traditional infrared night vision that only outputs black-and-white images. It delivers full-color imagery at night or in low-light environments. 4K resolution reveals fine details for high-quality inspection imagery. The laser rangefinder quickly obtains the distance and location coordinates of the observed target, enabling fast and precise positioning in complex scenarios and greatly improving the efficiency of search and rescue, security patrols, and other operations.
AI Multi-Object Detection for Precise Lock-On Tracking
The D-90Pro can be equipped with optional AICore, providing AI multi-object detection and tracking. It intelligently identifies pedestrians and vehicles in the captured image and can continuously lock onto and track any selected target. It is ideal for security monitoring, traffic patrol, emergency rescue, and other scenarios requiring long-duration tracking.
Multi-Protocol Control and Secondary Development Support
The D-90Pro supports network, UART, and S.BUS control and is compatible with private protocols and MAVLink, making it easy to integrate with various UAV flight controllers and ground control station systems. The open control interface provides ample room for secondary development and customized function expansion for different industry needs. With Dragonfly display and control software, users can view live imagery, control the gimbal, and download images online from a computer without protocol integration. The D-90Pro’s video feed supports OSD overlay of latitude, longitude, altitude, and other information, while photos support shooting-point coordinate EXIF saving.
Flexible Mounting, Transforming Visual Perception Missions
The D-90Pro supports both downward and upward mounting and can be quickly installed on multirotor drones, fixed-wing aircraft, VTOL fixed-wing aircraft, quadruped robot dogs, and other carrier platforms. It is suitable for all-weather operations including security patrol, emergency search and rescue, infrastructure inspection, power line inspection, firefighting and rescue, and border control, providing a stable, clear, and geo-locatable intelligent visual perception solution.
