Description

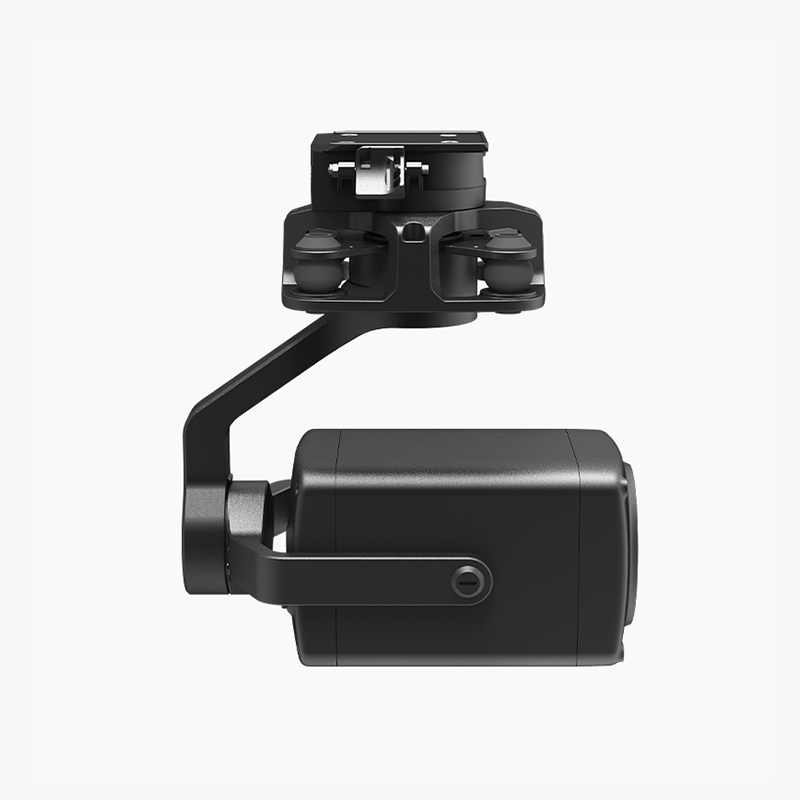

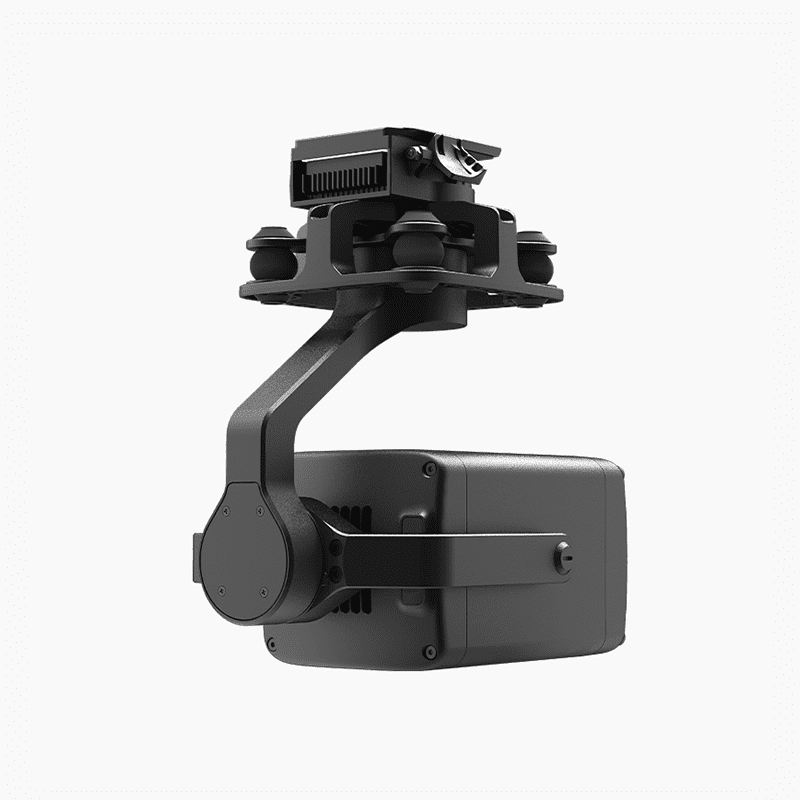

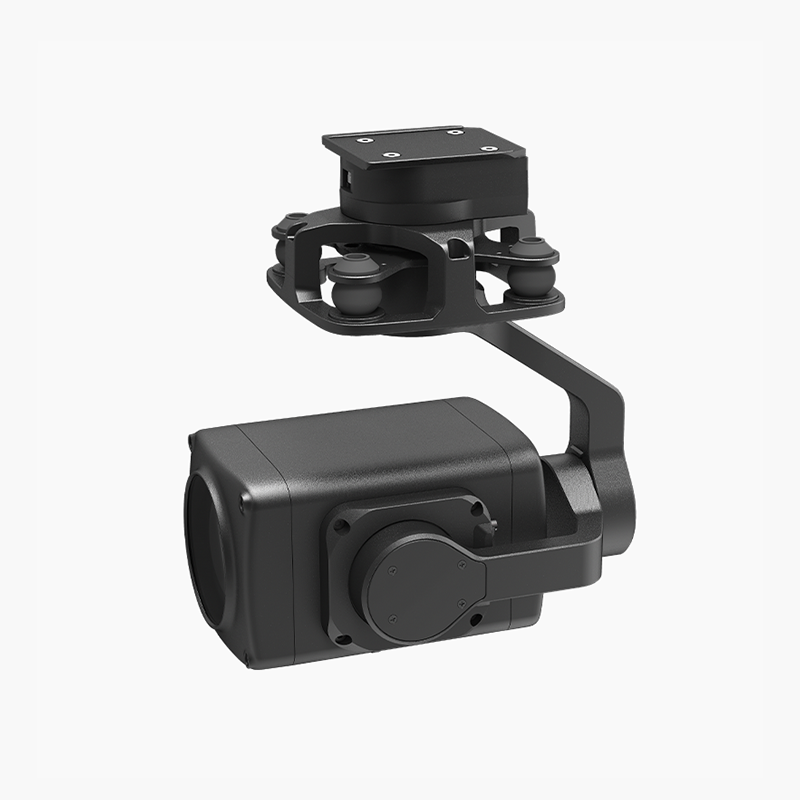

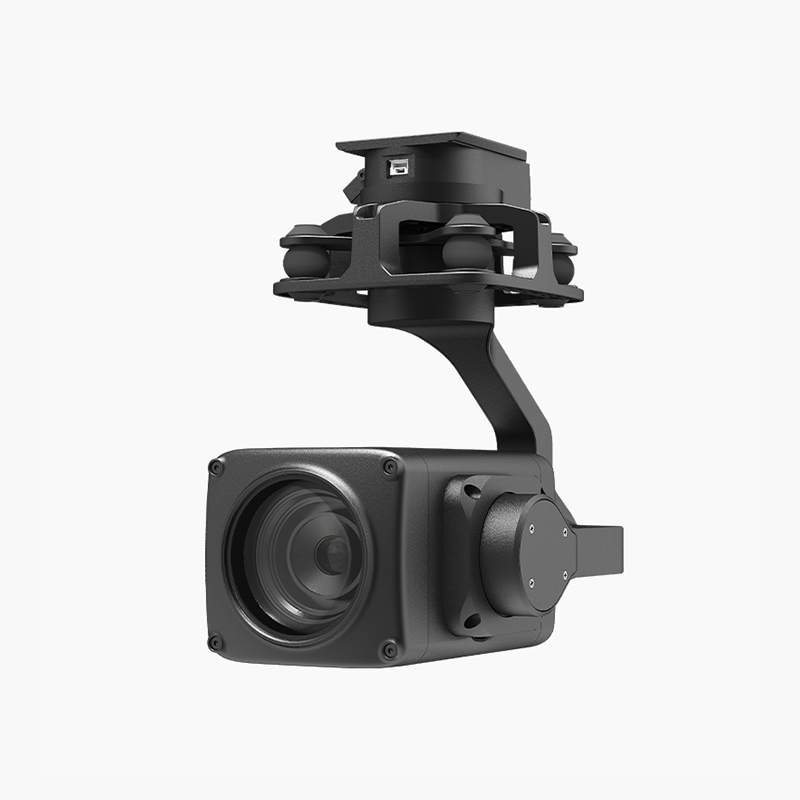

The Z-6N is an AI-powered UAV gimbal camera that combines a 2K-resolution 120x hybrid zoom camera with dual AI imaging engines. It delivers night-vision-grade imaging in extremely low light and high-contrast lighting conditions. With AI multi-object detection and tracking, it can be mounted on multi-rotor drones, fixed-wing aircraft, quadruped robot dogs, and other carrier platforms, providing intelligent visual perception for security inspection, forest monitoring, emergency rescue, and more.
Full-Color Night Vision, True-to-Life Color
- 2K resolution
- 120x hybrid zoom
- 1/1.8-inch ultra-starlight image sensor
- AI-ISP full-color night vision
- AI-HDR extreme wide dynamic range
The Z-6N uses a 20x optical zoom and 120x hybrid zoom camera with 2K resolution, enabling both wide-area search and long-range observation with clear identification of fine details. It adapts to a wide range of mission requirements.
Powered by dual AI imaging engines, the Z-6N breaks the limitation of traditional night vision devices that can only output black-and-white images. Even in extremely low-light environments, it delivers full-color images with rich detail and natural color, achieving professional night-vision-grade imaging quality.
3-Axis Mechanical Stabilization, Always Steady
- Dimensions: 141 × 98 × 160mm
- Weight: 670g
- Yaw rotation: 360° × N
- Stabilization accuracy: ±0.01°
The Z-6N adopts an orthogonal 3-axis mechanical stabilization structure. Its yaw axis supports 360° × N unlimited rotation, providing full-area coverage without blind spots.
Using dual-IMU complementary algorithms, combined with IMU temperature-controlled calibration and carrier AHRS/INS data fusion, the Z-6N achieves stabilization accuracy of ±0.01°. Even under severe aircraft vibration, turbulent airflow, or rapid direction changes, it maintains smooth, stable footage.
AI Perception for Precise Target Lock and Tracking
The Z-6N features AI multi-object detection and tracking. It intelligently identifies pedestrians and vehicles in the image and allows the operator to select any target for continuous lock-on tracking. In real operations, it automatically follows moving targets and can quickly reacquire and continue tracking even when the target moves at high speed or is briefly occluded. This greatly reduces operator workload and improves operational continuity and accuracy.
Multiple Interfaces and Protocols, Ready for Secondary Development and Customization
The Z-6N supports network, UART, and S.BUS control. It integrates power, Ethernet, UART, and other multifunction ports to meet diverse requirements. It is compatible with both private protocols and MAVLink. With the XF-QGC software, it works with mainstream flight controllers such as PX4 and ArduPilot, unlocking the full functions of the gimbal camera.
With Dragonfly display and control software, the Z-6N requires no protocol integration. Users can view live video, control the gimbal, and download images online from a computer. It also supports single-station multi-gimbal control and matrix split-screen display, enabling simultaneous management of multiple gimbal cameras for multi-drone collaborative operations.
Flexible Mounting for Diverse Applications
The Z-6N supports both upright and inverted mounting and can be quickly installed on drones, robot dogs, and other platforms. It is widely used in security, border patrol, rescue, inspection, monitoring, and other fields, enabling 24/7 intelligent operations.
