C-20S Single-Axis Gimbal

C-20S Single-Axis Gimbal

Compatible with DJI O4 Pro/O4/O3, Walksnail Avatar/Moonlight, and 19mm FPV cameras. Lightweight aluminum-magnesium FPV gimbal with single-axis stabilization, Head Tracking, MAVLink support, and 7.4–26.4V input.

$69.00
Add to Wishlist
Add to Wishlist

Description

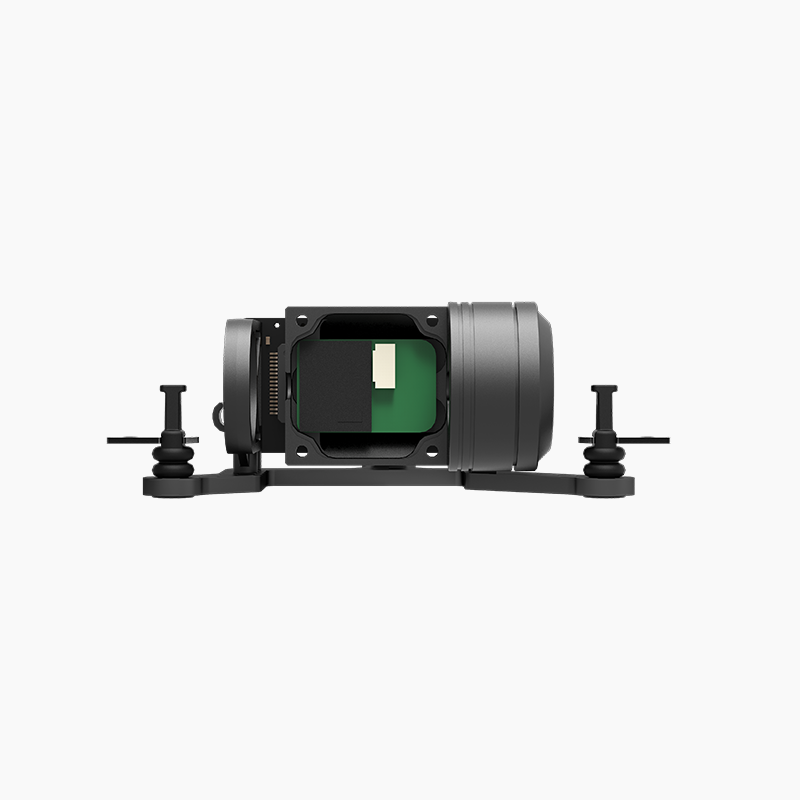

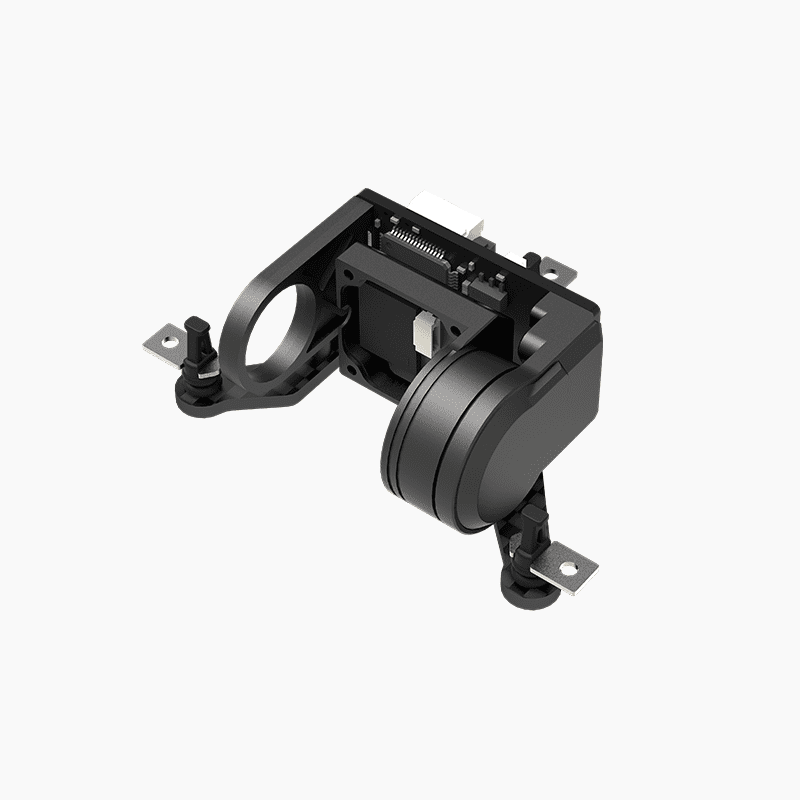

Designed and developed by Xianfei Technology, the C-20S Single-Axis Gimbal features a main body crafted from aluminum‑magnesium alloy and weighs just 20g. It is fully compatible with major digital FPV systems including DJI O4 Pro, DJI O4, DJI O3, Walksnail Avatar, and Walksnail Moonlight, as well as 19mm‑wide analog cameras or other payloads. Thanks to its single‑axis mechanical stabilization architecture and high‑torque brushless motor, the gimbal delivers rock‑steady footage even under severe vibration, sharp turns, or high‑speed airflow—making it an ideal choice for RC cars, FPV fixed‑wing aircraft, scale planes, and more.

Ultra‑Lightweight, Rock‑Solid Imaging
  • Weight: 20g
  • Dimensions: 41.8×57×22.5mm
  • Stabilization accuracy: ±0.05°
  • Tilt range: ±120°

The C‑20S uses aluminum‑magnesium alloy to keep weight down to just 20g and volume compact at 41.8×57×22.5mm. For FPV platforms where flight time and agility are critical, this featherlight design means greater mounting flexibility and minimal impact on payload capacity.

With its single‑axis mechanical stabilization and high‑torque motor, the C‑20S achieves a stabilization accuracy of ±0.05°. Whether your craft is enduring rough terrain, aggressive maneuvering, or sudden gusts, the gimbal effectively cancels out unwanted shake and blur, ensuring smooth, clear video output at all times.

Wide Compatibility, Plug‑and‑Play

The C‑20S directly supports DJI O4 Pro/O4/O3, Walksnail Avatar, Walksnail Moonlight, and 19mm‑wide analog cameras or other devices out of the box. It offers multiple operating modes—Horizon Mode, Tilt‑Lock Mode, and direct Headtracker input—along with a versatile control interface including UART (with both private protocol and MAVLink support), S.BUS, CRSF, and PWM. The Headtracker function delivers an immersive FPV experience, while the UART port enables deep integration with flight controllers and ground‑station software via MAVLink for advanced telemetry and control.

Flexible Mounting, Effortless Integration

The C‑20S supports both top‑mount and bottom‑mount orientations, adapting seamlessly to RC cars, FPV fixed‑wing planes, scale models, and more. Whether you’re racing an FPV quad at high speed, crawling over rough rocks with an RC vehicle, the C‑20S consistently filters out vibration to deliver a steady, real‑time video feed.

The C‑20S is equally well‑suited for educational research, competition events, and outdoor exploration where lightweight, reliable image capture is essential. Its broad device compatibility and open control interface make it an ideal choice for expanding the visual capabilities of any small‑scale carrier platform.

C-20S Release and Upgrade Records (pdf, 0KB)
2025-07-07
C-20_Upgrade_Package_V3.8 (rar, 0KB)
2025-07-07
Gimbal Private Protocol Assistant (rar, 0KB)
2025-07-10
C-20S Single-Axis Gimbal Specifications (pdf, 0KB)
2025-09-05
C-20S Single-Axis Gimbal User Manual-XF(A5)V1.4 (pdf, 0KB)
2025-09-05
Gimbal Private Protocol-XF(A5)V1.0.3 (pdf, 0KB)
2025-07-07
3D Print Files (rar, 0KB)
2025-06-26
C-20S_O3_Simplified Model (stp, 0KB)
2025-01-14
C-20S_Standard_Simplified Model (stp, 0KB)
2025-01-14
