Description
Dual-Sensor Fusion with Full-Color Night Vision

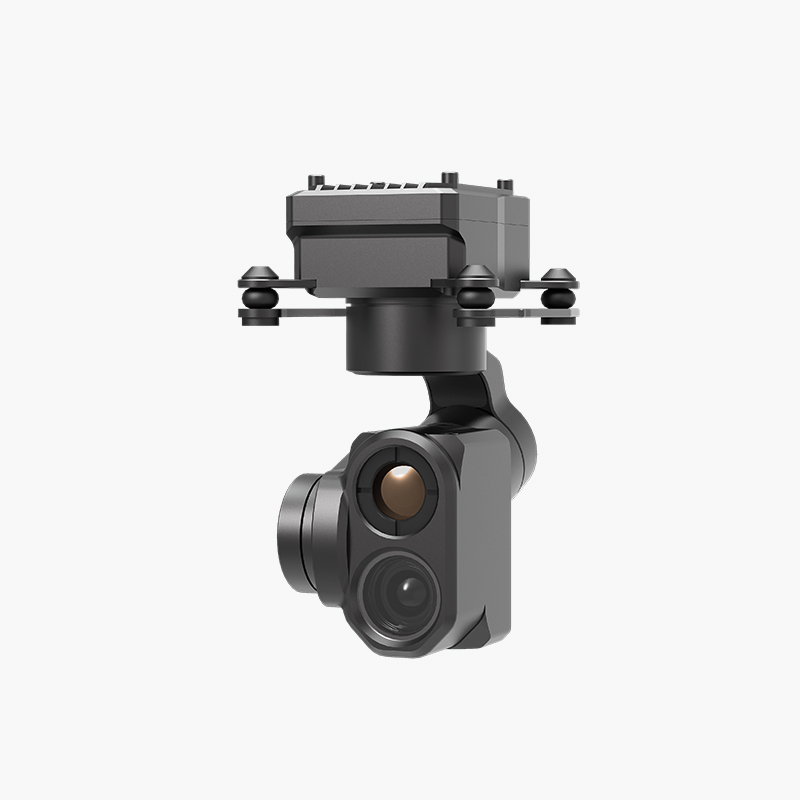

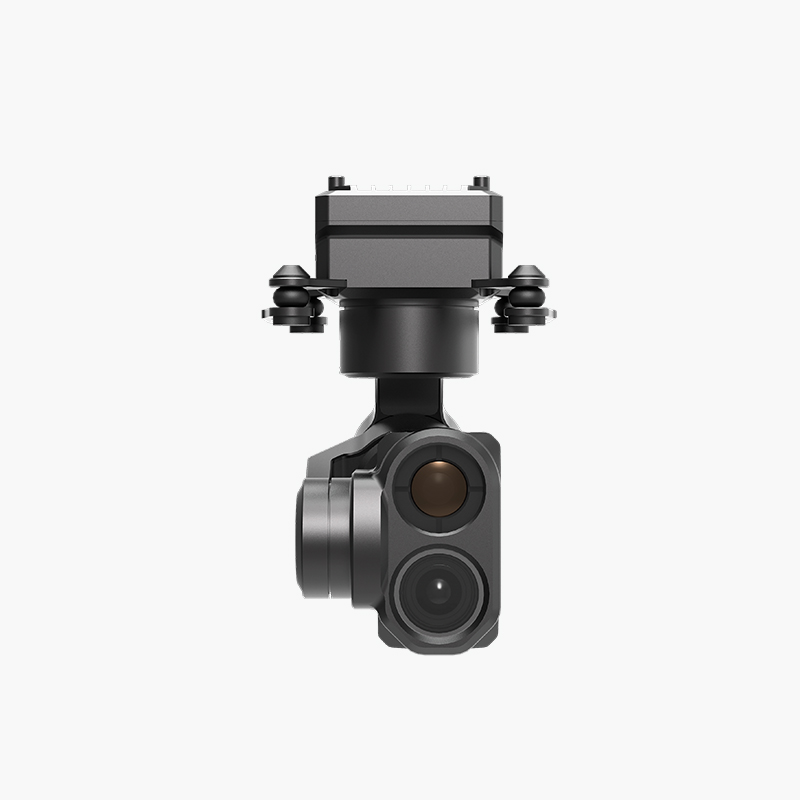

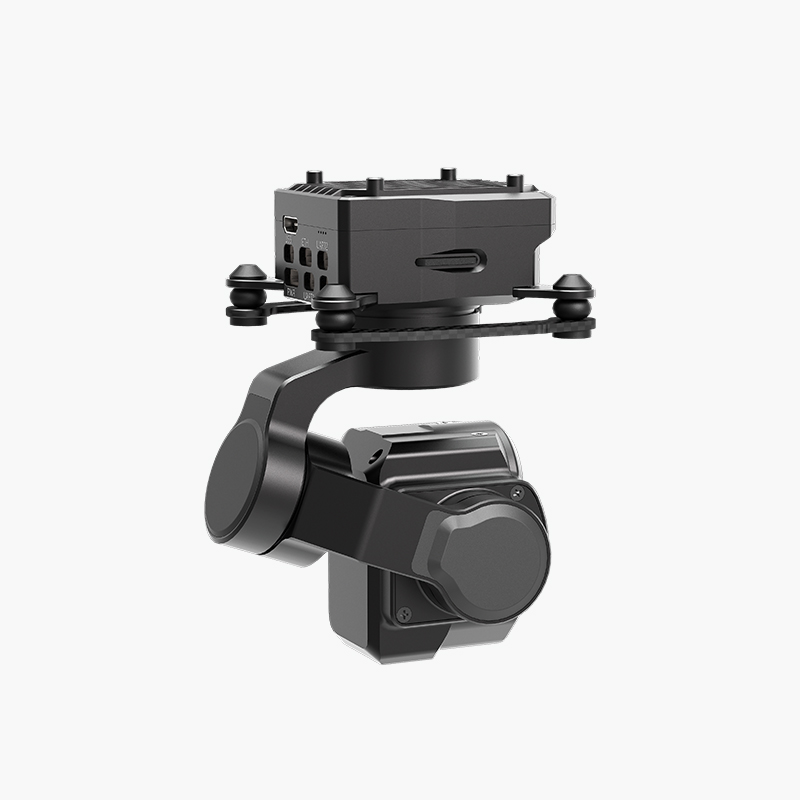

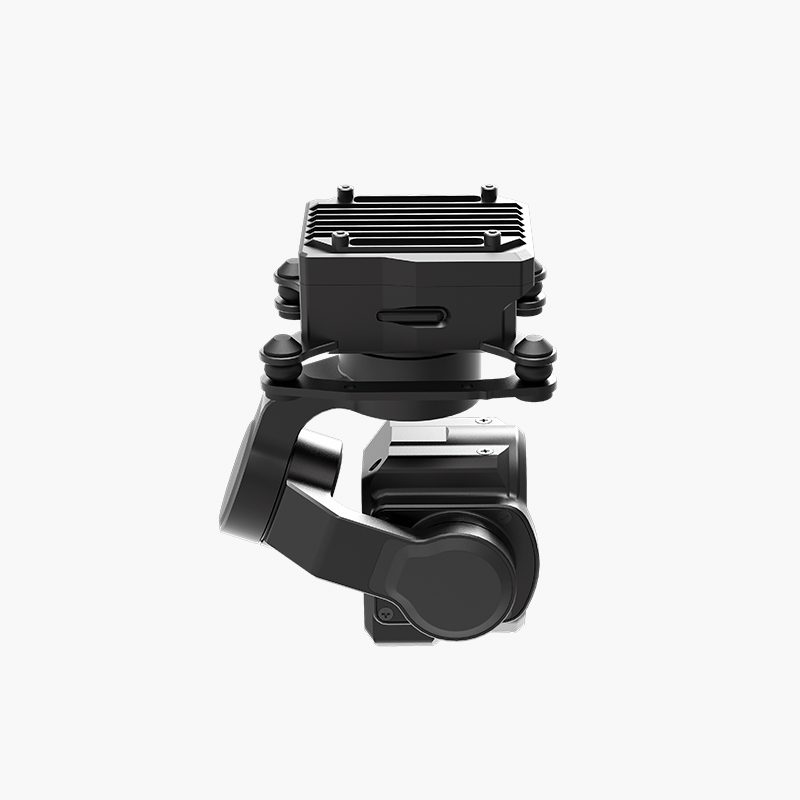

The Z-2Pro is a smart 4K full-color night vision micro dual-sensor gimbal camera featuring a miniature non-orthogonal 3-axis mechanical stabilization structure. It is compatible with a wide range of platforms, including FPV fixed-wing UAVs, multi-rotors, and robotic dogs. By integrating a 4K visible-light camera with a thermal imager, the Z-2Pro delivers crisp, stable imagery in challenging lighting conditions—day or night, high contrast or low light. It provides a reliable visual perception solution for inspection, security, and emergency response missions.
4K Resolution & Thermal Imaging – All-Weather Awareness
- 4K visible-light camera
- 640×512 thermal camera
- AI-ISP full-color night vision engine
- AI-HDR for extreme wide dynamic range
The Z-2Pro’s 4K visible camera captures fine details with exceptional clarity, while its thermal imager detects infrared radiation differences on object surfaces to produce clear images even in complete darkness. With dual AI imaging engines, it renders vivid full-color visuals in both low‑illuminance environments and scenes with stark brightness contrasts.
Micro 3‑Axis Stabilization – ±0.01° Accuracy
- Total weight: 130g
- Dimensions: 57.8×53.0×85.1 mm
- Stabilization accuracy: ±0.01°
- Tilt: –120° to +65°, Pan: ±140°
The Z-2Pro adopts a micro non‑orthogonal 3‑axis mechanical stabilization architecture that achieves independent three‑axis compensation within a compact footprint, providing a more efficient lever arm for high‑torque brushless motors. Dual‑IMU complementary algorithms, combined with IMU temperature control and carrier AHRS data fusion, deliver stabilization accuracy as precise as ±0.01°.
Even during aggressive maneuvers, gusty winds, or high‑speed flight, the Z-2Pro maintains exceptionally smooth video output. This ensures the validity of captured data in applications such as inspection, mapping, and security monitoring, preventing blur or target loss caused by vibration.
AI Multi‑Object Detection & Tracking – Pinpoint Lock
- Target size: 16×16 to 128×128 px
- Recognition speed: <40 ms
The Z‑2Pro is equipped with AI‑driven multi‑object detection and tracking that automatically identifies people and vehicles in the field of view and continuously locks onto any selected target.
Regardless of how the carrier maneuvers or moves, the Z‑2Pro keeps the target firmly in frame. This capability is especially critical in search‑and‑rescue, vehicle pursuit, and border patrol operations.
Rich Interfaces & Open‑Source Compatibility – Flexible Development
The Z‑2Pro supports control via network, UART, and S.BUS, and is compatible with both proprietary and MAVLink protocols, offering extensive room for secondary development.
With ALLXF’s proprietary Dragonfly ground control software, users can view live video, control the gimbal, and download imagery on a computer without any protocol integration.
Through the XF‑QGC software, the Z‑2Pro works seamlessly with mainstream open‑source autopilots like ArduPilot and PX4, enabling full access to all gimbal functions.
Versatile Mounting Options – Empowering Diverse Applications
The Z‑2Pro supports both downward and upward installation and can be deployed on multi‑rotor UAVs, robotic dogs, RC vehicles, and other unmanned platforms. In power line inspection, security patrols, emergency rescue, and beyond, it enables intelligent, autonomous operations that significantly boost efficiency and accuracy.
