Description

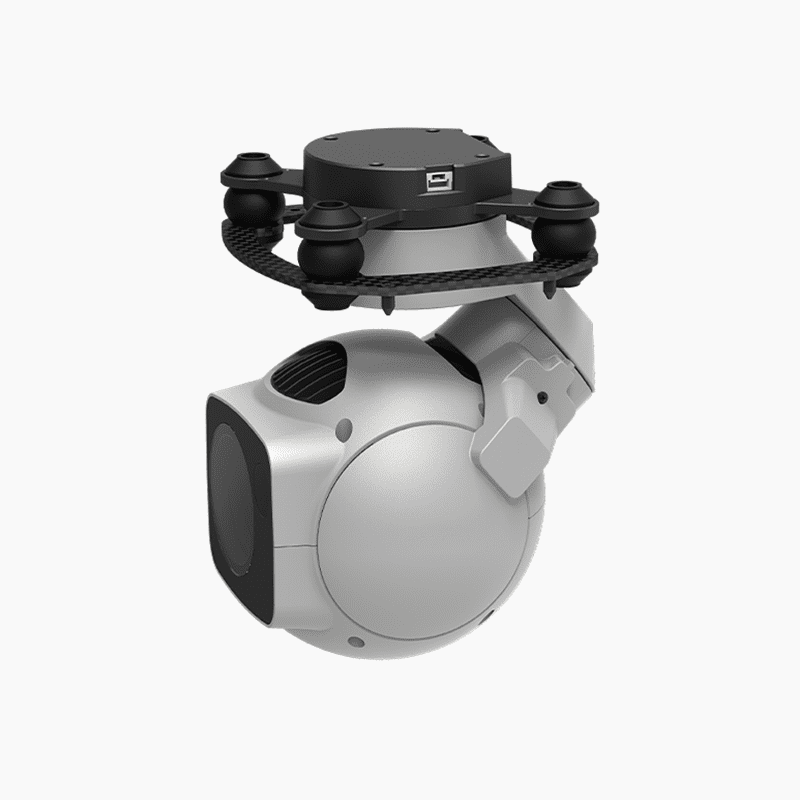

The D-80N intelligent black light full-color night vision spherical gimbal camera is equipped with a 40x hybrid zoom super-starlight level visible light camera and integrates dual AI imaging engines. It can output clear, full-color images even in extremely low light conditions and under extreme lighting conditions with strong contrast between light and dark. Combined with AI multi-target detection and tracking, a non-orthogonal 3-axis mechanical stabilization structure, and ALLXF’s self-developed software system, it provides all-weather, all-scenario visual perception solutions for complex scenarios such as security patrols, emergency rescue, and smart construction sites.
Compact Build Ultimate Stability
Total weigh 398g Sphere diameter 80mm Stabilization accuracy ±0.01°
The non-orthogonal 3-axis mechanical stabilization structure significantly reduces the turning radius and drag coefficient , effectively isolating the aircraft’s pitch, roll, and yaw vibrations, ensuring consistently smooth and stable footage.
Supports 360°×N continuous rotation, allowing for infinite rotation in any direction and observation without blind spots.
Full-Color Night Vision Daylight Clarity

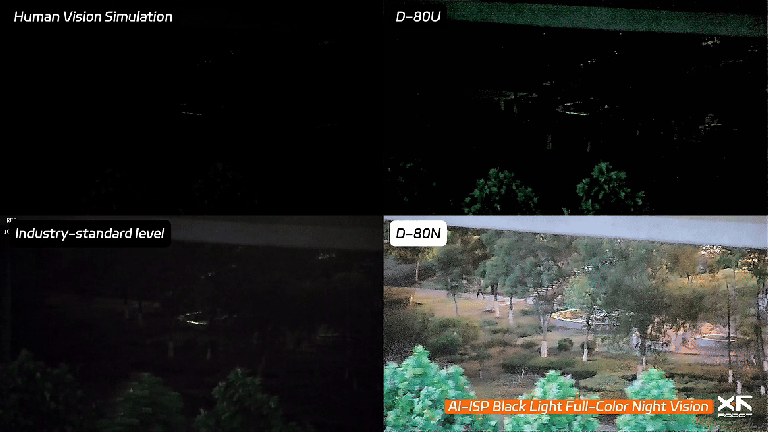

The D-80N intelligent black light full-color night vision spherical gimbal camera is a professional UAV payload featuring a 40× hybrid zoom ultra-starlight camera designed for long-range observation, surveillance, and inspection missions. Powered by the AI-ISP full-color night vision engine and AI-HDR technology, it delivers vivid full-color images in low-light environments while preserving excellent detail in complex lighting conditions.

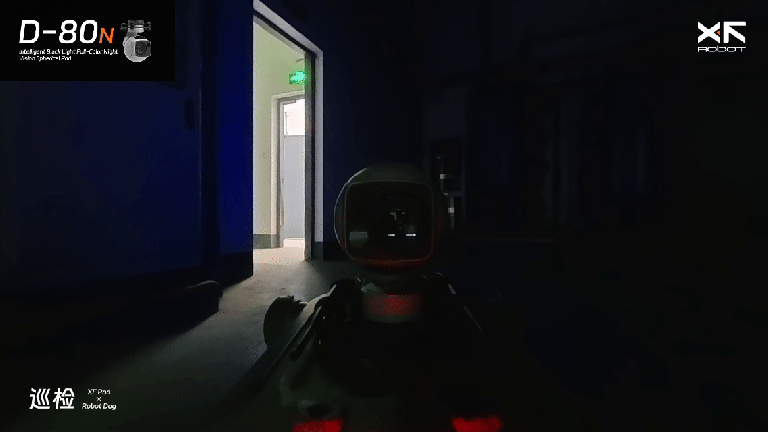

In extreme pitch-black environments, near-infrared laser illumination eliminates the camera’s reliance on ambient light. When the near-infrared enhancement mode is activated, the display instantly switches to grayscale,amplifying light-dark contrasts to help users swiftly locate targets.
AI Multi-Target Detection & Tracking

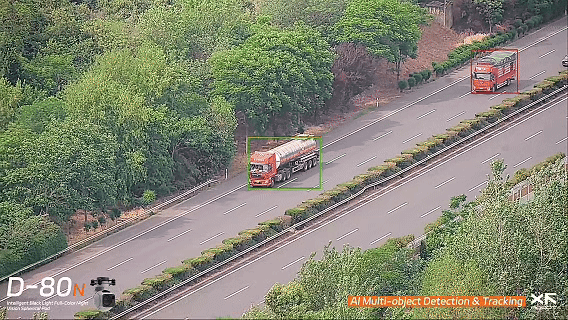

Equipped with AI multi-object detection and tracking technology , intelligently identify people and vehicles and continuously track selected targets in real time.
Target size: 16×16~128×128 pixels; Recognition speed: <40 milliseconds
Pedestrian [1.8×0.5m]: Detection distance 927m, recognition distance 185m, verification distance 93m
Small vehicles [4.2×1.8m]: Detection distance 1218m, identification distance 244m, verification distance 122m
Large vehicles [6.0×4.0m]: Detection distance 2595m, identification distance 519m, verification distance 260m
Open Protocol Full Customization
ALLXF’s self-developed Dragonfly display and control software, users can watch the image and control the pod without protocol docking.
Real-time video display on the computer, pod control, and download photos and videos online.
The screen supports OSD information overlay. Images support EXIF saving. Live video streaming and recording support SEI (Supplemental Enhancement Information) saving.

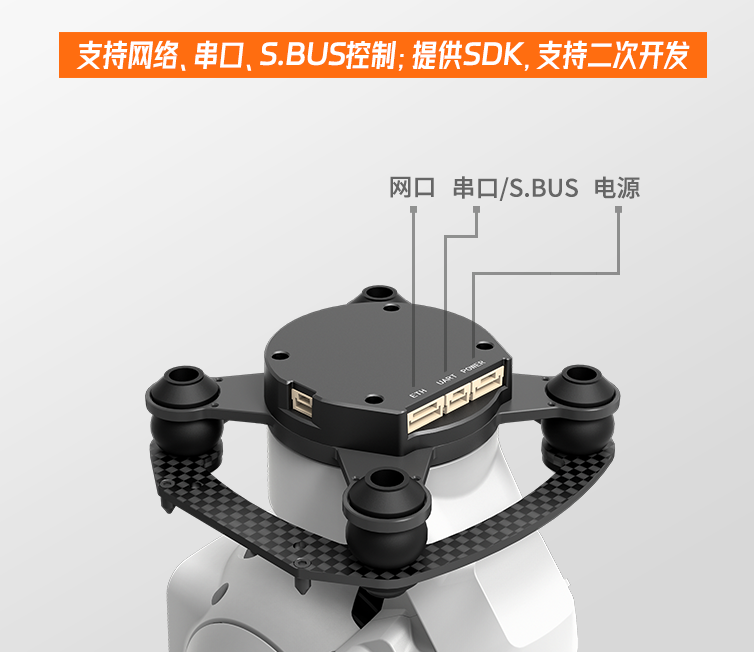

ALLXF has custom-developed the XF-QGC software, which supports network, UART and S.BUS control and compatible with both private protocol and MAVLink protocol.
It directly integrates with mainstream open-source flight control systems such as PX4 and ArduPilot , providing secondary development opportunities for universities, research institutions, and system integrators.
One Payload Endless Applications

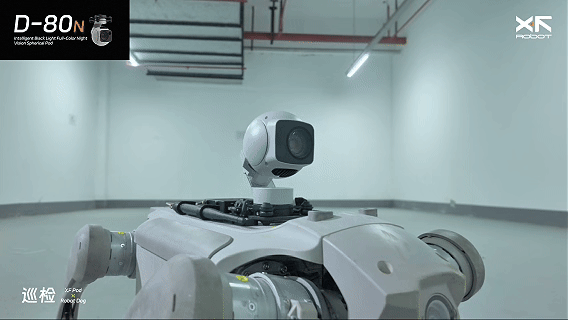

The D-80N intelligent black light full-color night vision spherical gimbal camera supports both hoisting and vertical mounting modes and can be equipped with various types of carrier platforms, including fixed-wing, multi-rotor, and quadruped robot dogs.
Leveraging its core advantages of intelligent black-light full-color night vision and extremely stable image , it can achieve 24/7 unmanned operation in complex scenarios such as construction sites, power plants, utility tunnels, and rescue operations.
