Description

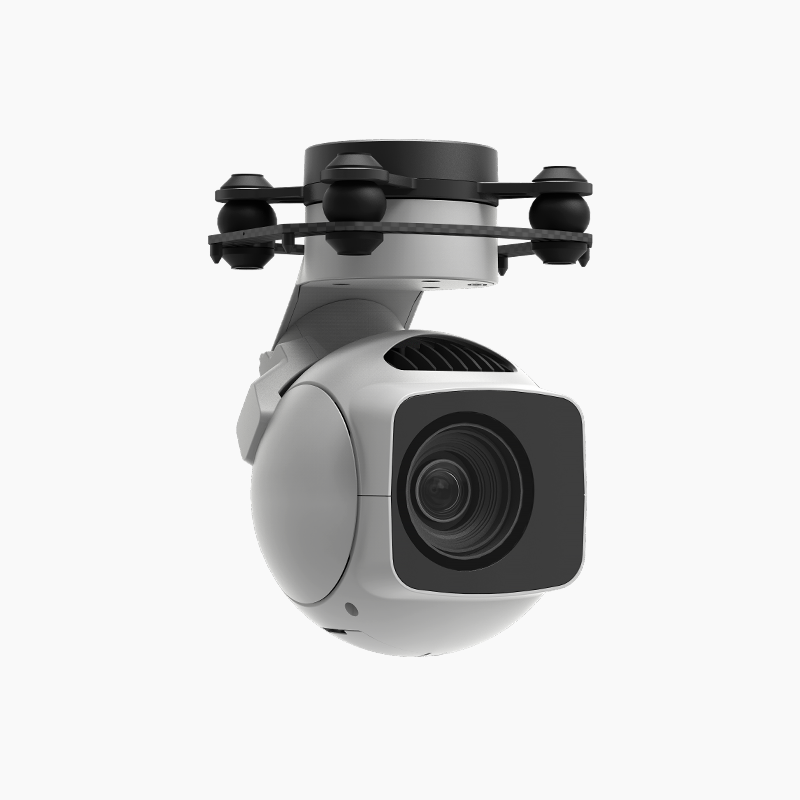

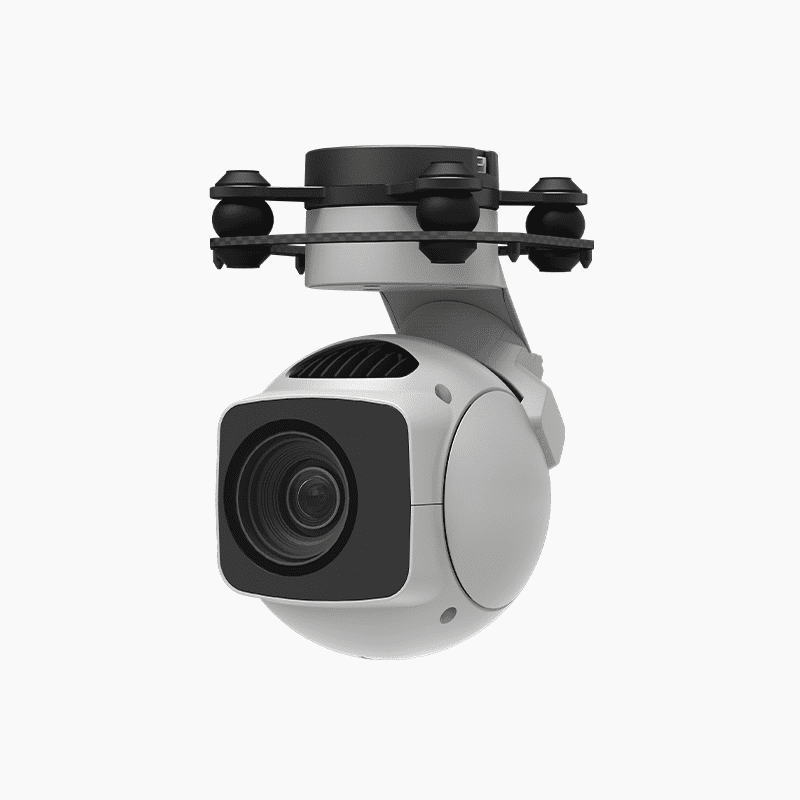

- The D-80U is a professional UAV payload featuring a 4K visible-light camera with 80× hybrid zoom capability, designed for long-range observation, surveillance, and inspection missions. Powered by the AI-ISP full-color night vision engine and AI-HDR technology, it delivers vivid full-color images in low-light environments while preserving excellent detail in bright and dark areas. The advanced imaging system ensures reliable performance in nighttime operations and challenging high-contrast conditions.
- Equipped with AI multi-object detection and tracking technology, the D-80U can intelligently identify people and vehicles and continuously track selected targets in real time. Advanced AI algorithms improve target recognition accuracy and tracking stability, while the powerful 80× hybrid zoom camera enables reliable long-range target observation and identification.
- The D-80U adopts a compact full-sphere design with a high-precision 3-axis non-orthogonal stabilization structure and supports both downward and upward installation. With Dragonfly software, users can view live video streams and control the payload without protocol docking. Integrated with XF-QGC software, it supports MAVLink-based flight controllers and open-source autopilot systems. Ideal for aerial surveillance, border security, public safety, infrastructure inspection, emergency response, search and rescue, industrial monitoring, and autonomous unmanned platform applications, the D-80U combines 4K imaging, AI tracking, full-color night vision, and long-range zoom in a compact and versatile UAV payload solution.
Specifications:
- The D-80U carries a 4K resolution 80x hybride zoom camera, combined with the AI-ISP full-color night vision imaging engine and the AI-HDR imaging engine, can present clear full-color images wether in extremely low-light environments or in complex lighting environments. Featuring AI multi-object detection and tracking, the D-80U can constantly track one of the persons and vehicles intelligently identified in the image.
- The D-80U features a compact full-sphere design with a 3-axis non-orthogonal mechanically stabilized structure, supporting both downward and upward installation. With the Dragonfly software, user can watch the image and control the pod without protocol ducking. Integrated with the XF-QGC software, it achieves comprehensive functionality compatibility with open-source autopilots.

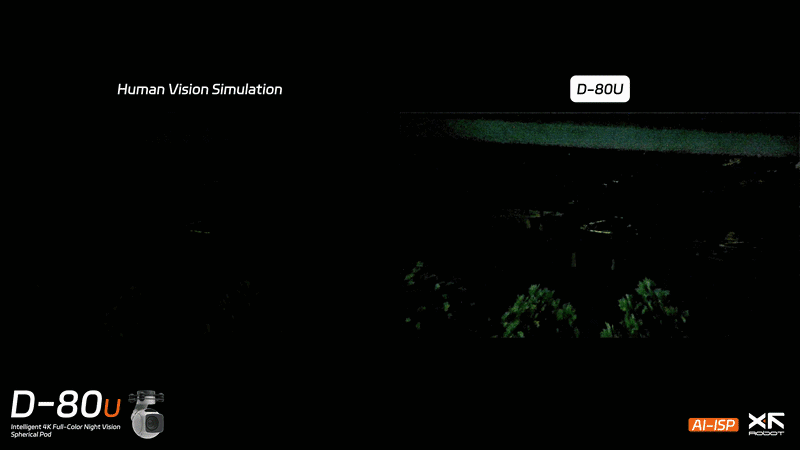

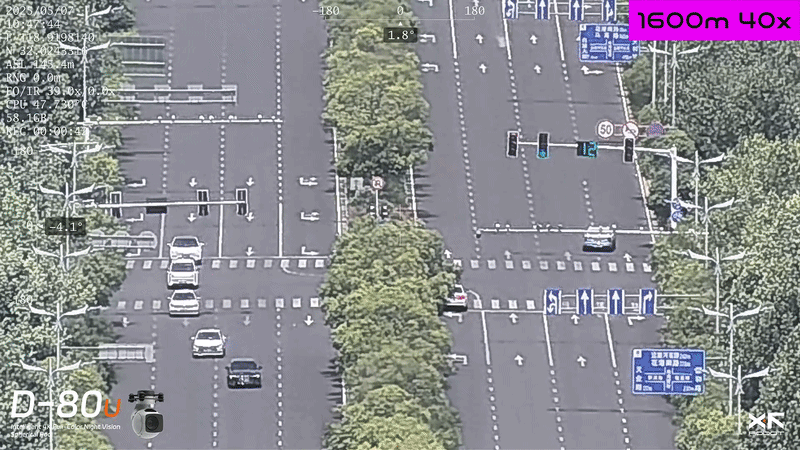

- 80x hybrid zoom camera with 4K resolution, powered by the AI-ISP full-color night vision imaging engine, delivers clear full-color images in low-light environments. Featuring advanced HDR capability, it ensures both highlights and shadow details remain vividly visible even in complex lighting scenarios with extreme brightness contrasts.

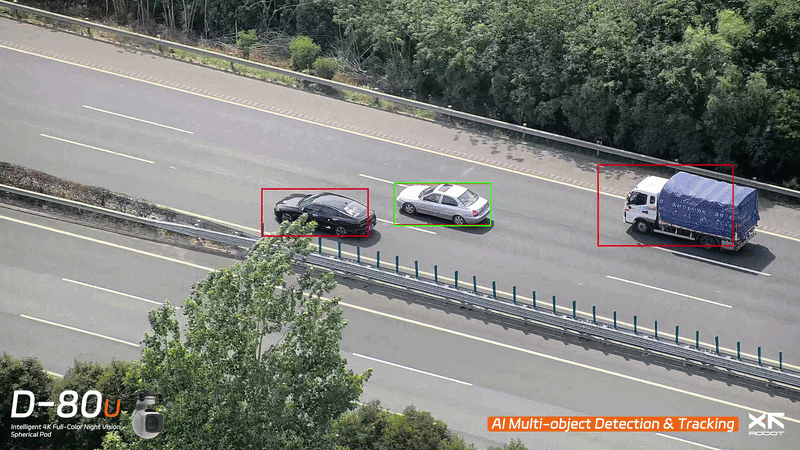

- Features AI multi-object detection and tracking, which can constantly track one of the persons and vehicles intelligently identified in the image.

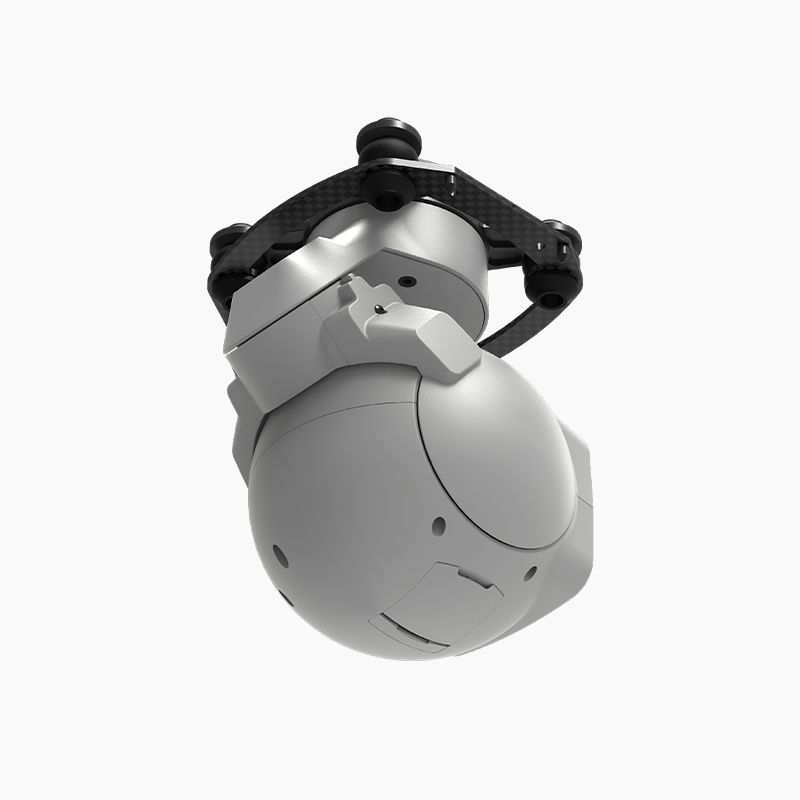

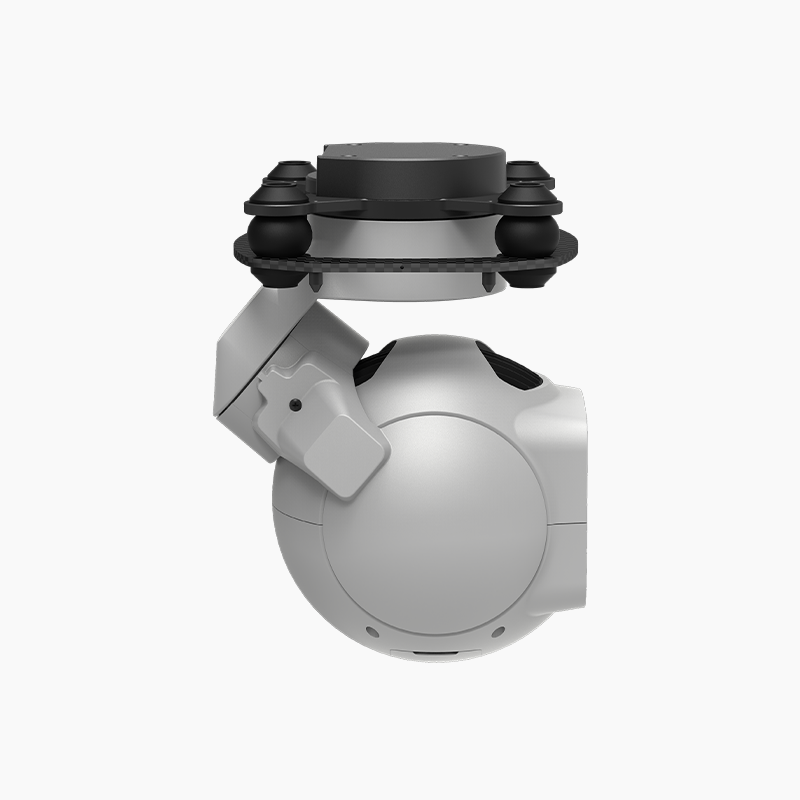

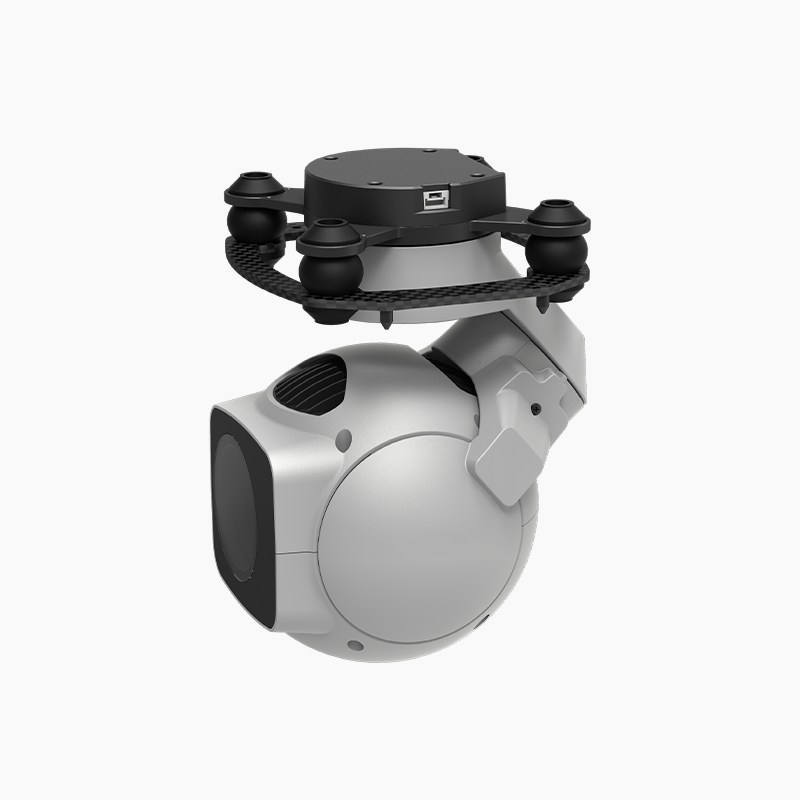

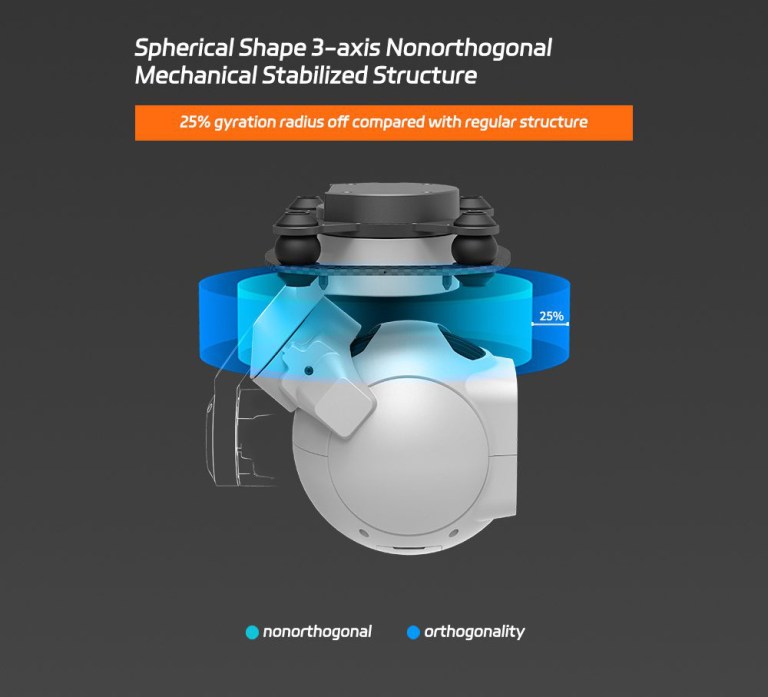

- Low-profile spherical shape and 3-axis nonorthogonal mechanical stabilized structure, minimize the gyration radius and the wind resistance of the pod. The gimbal is able to spin continually around its yaw axis.

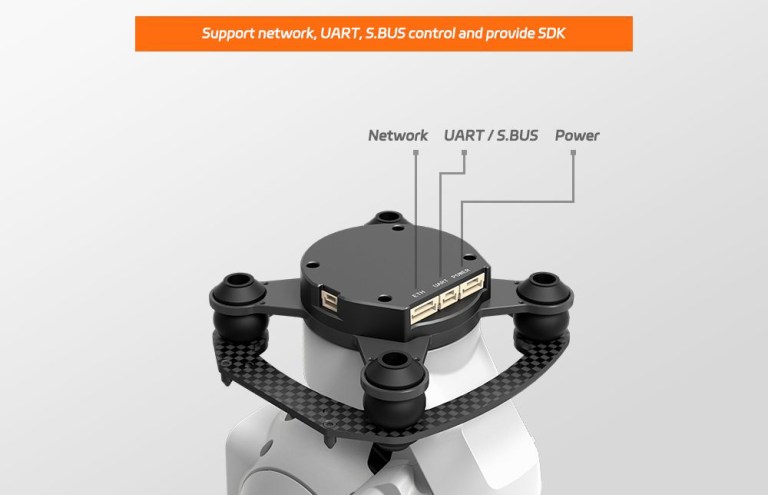

- Supports network, UART and S.BUS control and compatible with both private protocol and MAVLink protocol.
- Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the gimbal provides a stabilization accuracy at ±0.01°.
- Can be mounted onto multiple carriers, whether downward or upward.
- With the Dragonfly software, user can watch the image and control the pod without protocol ducking,and download photos and videos online as well.

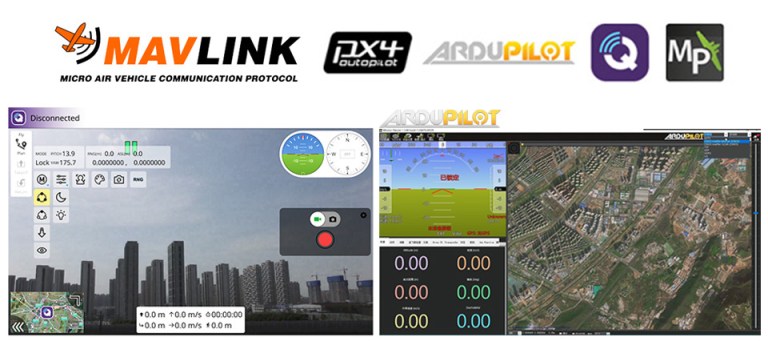

- With the customized QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.
- Screen supports overlaying OSD information. Image supports EXIF svaing. Live video stream and recording supports SEI saving.（The SEI functionality will be supported via subsequent firmware updates）
- 20~53 VDC wide voltage input.
