Description

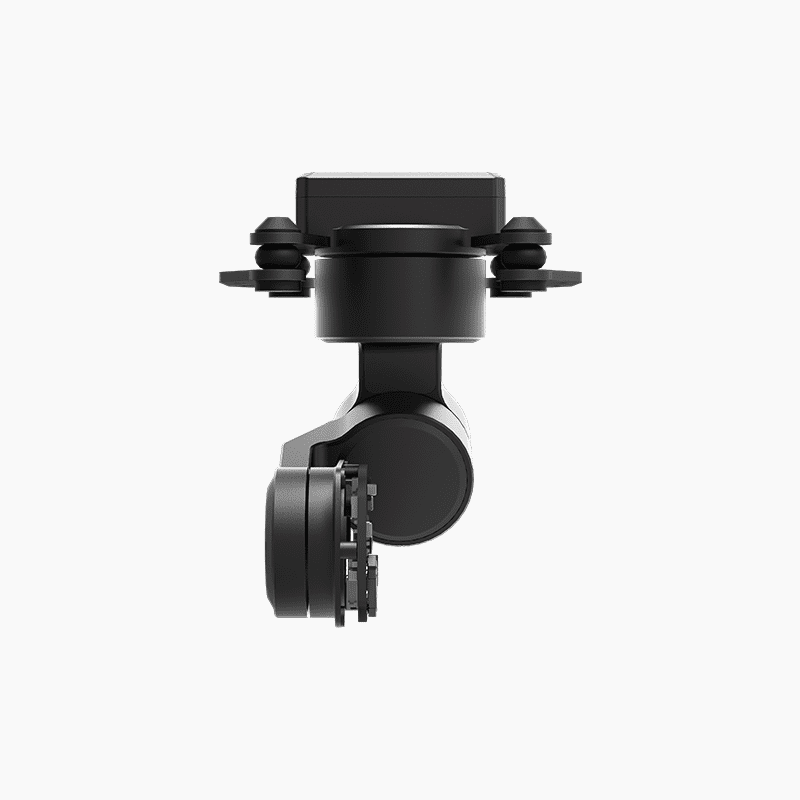

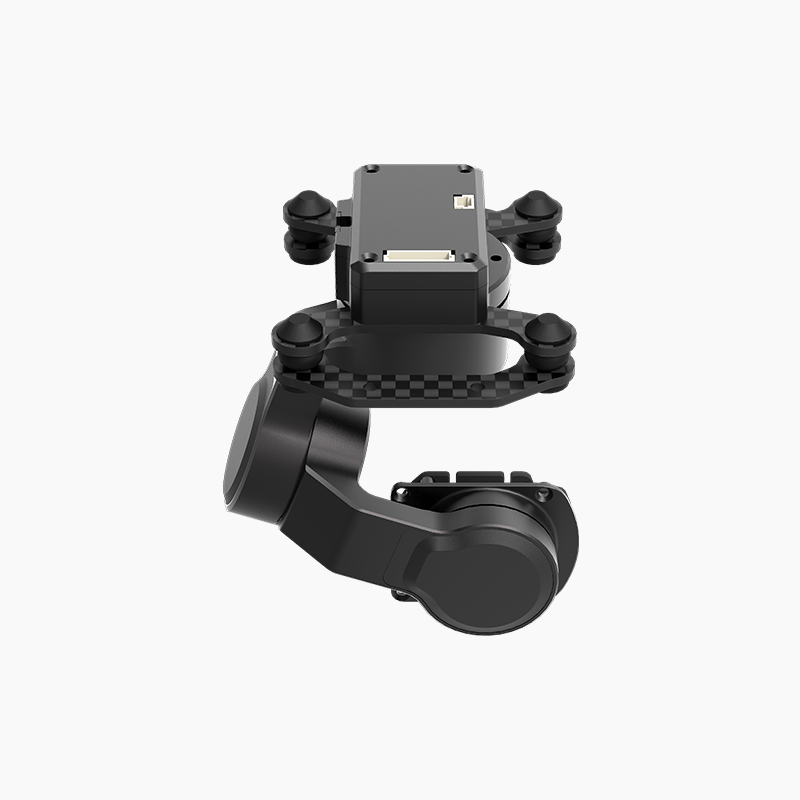

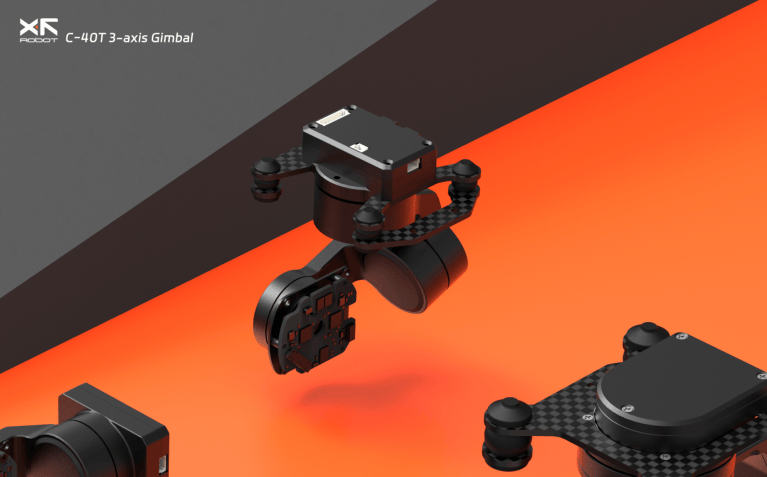

The C‑40T 3‑Axis Gimbal, independently developed by Xianfei Technology, features a non‑orthogonal three‑axis mechanical stabilization structure paired with high‑torque brushless motors. It delivers stable video output even under severe vibration and high‑speed airflow impact, providing reliable stabilization for FPV racing drones, fixed‑wing aircraft, robot dogs, and other carrier platforms.
Three‑Axis Stabilization – Ultimate Image Stability
- Weight (including damping components): 58 g
- Dimensions (including damping components): 55.5 × 53 × 66 mm
- Stabilization accuracy: ±0.05°
The C‑40T can be seamlessly mounted on FPV racing drones, fixed‑wing aircraft, scale models, and more, with virtually no impact on the carrier’s maneuverability or flight time. Thanks to its non‑orthogonal three‑axis design and high‑torque motors, it maintains smooth, stable footage even during high‑speed flight, sharp turns, or complex terrain traversal – achieving a stabilization accuracy of ±0.05°.
Rich Interfaces – Fully Customizable
The C‑40T supports five control methods:
- Headtracker direct connection

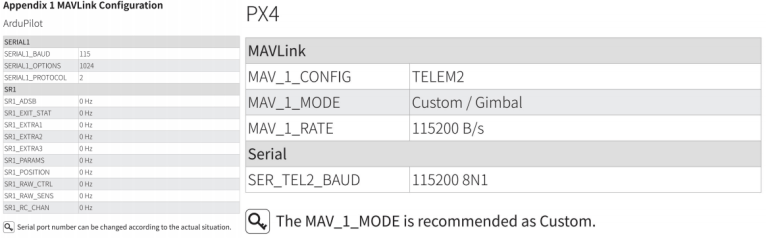

- UART (private protocol & MAVLink)
- S.BUS
- CRSF
- PWM
These cover the mainstream control needs in both FPV and industrial applications. Users can integrate the gimbal with flight controllers, computers, or ground station systems, allowing flexible incorporation into consumer FPV, industrial drones, robot dogs, and other system architectures.
Easy Installation – Versatile Operation
- Pitch: ‑110° to +145°
- Roll: ±45°
- Yaw: ±145°
The C‑40T supports both downward and upward mounting, enabling quick switching between installation orientations. It offers three operating modes – FPV mode, Pitch‑Lock mode, and Horizon mode – to suit different shooting scenarios.
When paired with the optional Headtracker module, the C‑40T delivers an immersive first‑person control experience: head movements are captured in real time and mapped to pitch and yaw motions, giving FPV pilots exceptional presence and precise handling.
Wide Compatibility – Diverse Applications
- FPV racing drones: Effectively filters airframe vibrations during high‑speed flight, ensuring crisp, stable footage – ideal for racing, freestyle, and cinematic aerial filming.
- Fixed‑wing and scale aircraft: The 3‑axis stabilization and Headtracker control make long‑range reconnaissance and route tracking effortless.
Beyond aviation, the C‑40T is also well suited for education and research, model competitions, outdoor exploration, small‑scale inspection, and any application that demands lightweight, stable image capture. Its broad compatibility, flexible mounting options, and open control interfaces make it the ideal choice for expanding visual capabilities across virtually any carrier platform.
